The grate is representative of the entire design line.

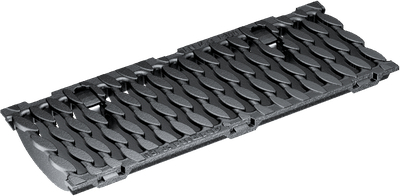

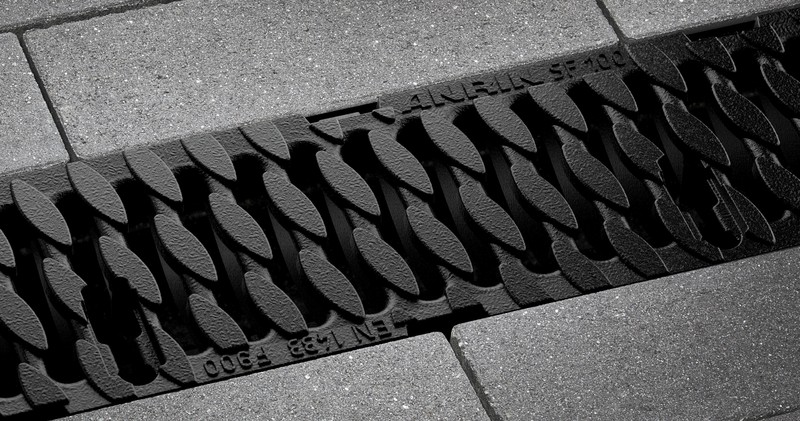

Slotted grating OvalGrip Design
Material: ductile-iron (KTL-coated)
Length: 50 cm
Load class: E600*, F900*
Length: 50 cm
Load class: E600*, F900*
Matching channel body
SF-150 Heavy duty channel
Load class:
D400*, E600*, F900*
Load class:
D400*, E600*, F900*
ANRIN heavy duty channels
A channel system for high loads in commercial construction and urban development. Developed for draining rainwater from large areas, such as depots, petrol stations, airports, etc. It uses channels with nominal widths of 100 to 300, which are characterised by their high durability and large intake capacity. The key feature of these channels is the embedded frame made of ductile cast iron. They give the channels the stability that they need to withstand the high loads generated by heavy vehicles. Another special feature of the heavy-duty channels is the building approval from the DIBt for use in storage, filling and handling plants. Just as critical for the functionality of these drainage channels is the fastening technology in the cover gratings. The RapidLock fastening developed specifically for the channels is self-locking, without requiring any additional tools, and works reliably even when they are heavily soiled.
| SF-150 Heavy duty channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 21.4 cm |
| Height | 22.0 – 32.0 cm |
| Weight | 17.0 - 40.8 kg |
| Nominal width | 150 |
| Joint formation | UNILINK®- Joint |
| Clasp | RapidLock fastening |
| Load capacity | F900 (test force 900 kN) |
Channel dimensions for SF-150
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN RapidLock fastening
This patented fastening developed in-house by ANRIN combines all the important functions of a grating lock for the accommodation of heavy loads in a stable and functional component. In addition, it is installed unobtrusively and harmonically into the attractive surface of the cast iron grating.
Advantages:
· Easy to install and lock in place
· Self-locking Rapidlock lacks the grating safely in place for traffic
· Better accommodation of traffic loads with intermeshing of grating and channel body
· Reliable function even when heavily soiled
· It is locked in place and lifted out without special tools
Accessorie for SF-150
Channel body
SF-150
Channel body
100 cm
with pipe socket
SF-150
End cap
closed
SF-150
End cap
with DA / OD 110
poured pipe socket
SF-150
Pipe socket
SF-150
Seal set
SF-150
Step connector
SF-150
Sump unit
with DA / OD 110
poured pipe socket
SF-150
Accessories dimensions for SF-150 sump unit
