Slotted grating HEELGUARD

Material: galvanised steel
Length: 50, 100 cm
Load class: A15

Matching channel body

SELF-100 Smart channel
Load class:
A15, B125
Image channel
SELF ECO channel
Load class:
A15, B125
Image channel

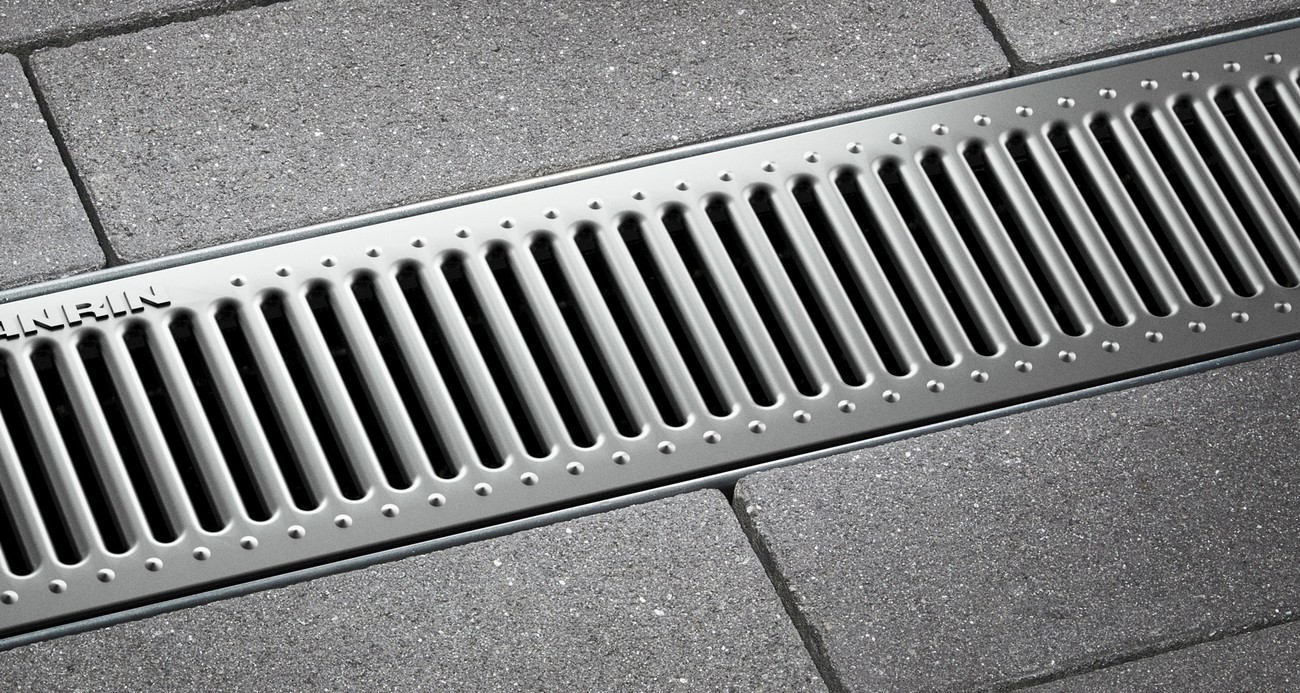

Image Slotted grating HEELGUARD

The grate is representative of the entire design line.

ANRIN SELF structural elements made of resin concrete

The ANRIN SELF ECO channels, with their low overall height of 8 cm, are exclusively used in residential construction. The main applications are pavements, courtyards, doorways and terraces.

SELF-100 Smart channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 12.2 cm
Height 9.6 - 10.3 cm
Weight 4.2 - 12.4 kg
Nominal width 100
Joint formation

UNILINK® joint

Clasp Clip locking
Load capacity Slotted grating HEELGUARD, galvanised steel, stainless steel, cl. A15; Mesh grating, galvanised steel, cl. B125; Longitudinal profile grating, stainless steel, cl. A15; Slotted grating OvalGrip, ductile-iron, cl. B125; Slotted grating OvalGrip, polyamide, cl. B125
Grating Longitudinal profile grating, Mesh grating, Polyamid grating OvalGrip, Slotted grating HEELGUARD, Slotted grating OvalGrip Design

Channel dimensions for SELF-100 Smart

Image Gutter size for SELF-100 Smart channel

ANRIN Snap-in fastening

Image ANRIN Snap-in fastening

Decades of experience and detailed product development in the areas of assembly, maintenance and cleaning of drainage systems have produced impressive solutions for permanent fastening technologies.

ANRIN Snap-in fastenings are optimised for the specific load classes and unite reliability and high quality with functional design.

Accessories for SELF-100 Smart

Image End cap PP made of Polypropylen

End cap PP made of Polypropylen

black

SELF-100 Smart

Image End cap PP made of Polypropylene

End cap PP made of Polypropylene

grey

SELF-100 Smart

Image End cap PP made of Polypropylene

End cap PP made of Polypropylene

black

SELF-100 Smart

Image End cap PP made of Polypropylene

End cap PP made of Polypropylene

grey with pipe connection

SELF-100 Smart

Image SELF 100 Smart leaf mesh

SELF 100 Smart leaf mesh

SELF-100 Smart

Image Sump unit

Sump unit



SELF-100 Smart

Image Venturi insert

Venturi insert

pre-assembled

SELF-100 Smart

Accessories dimensions for SELF-100 Smart

Image Accessories dimensions for SELF-100 Smart

SELF installation instructions

With ANRIN drainage systems, accumulating rainwater should be drained safely and quickly. Moreover, the structural elements have the task of accommodating dynamic loads arising from traffic-related demands and dispersing them to the area of the foundation.

Amongst others, the following technical rules and regulations in their respective valid versions must be observed for the selection, design and installation of ANRIN drainage systems.


The following installation guidelines are schematic representations. These are provided as examples and are non-binding. The information provided here is based on our long-term experience in excavation and road construction as well as the state-of-the-art technology. Despite this, designers and planners are always obligated to check the products and the installation instructions for their appropriateness. The example details are simplified recommendations for execution.

Constructions are to be re-created on a project-specific basis.

Image 1 SELF-100 Smart Installation guide

1.

Excavate trench. Fill in and pre-compact base course. Apply concrete pad, 3 parts sand + 1 part cement + 1 part water, to base course.

Image 2 SELF-100 Smart Installation guide

2.

Connect pipe connections to the pipeline.

Image 3 SELF-100 Smart Installation guide

3.

Place channel elements and sump unit on the concrete pad. Align components so that they are level.

Image 4 SELF-100 Smart Installation guide

4.

Position end caps.

Image 5 SELF-100 Smart Installation guide

5.

Complete the series and ensure the level alignment of the components.

Image 6 SELF-100 Smart Installation guide

6.

Backfill the concrete pad.

Image 7 SELF-100 Smart Installation guide

7.

Lay the paving.

Image 8 SELF-100 Smart Installation guide

8.

The surface should be 2 to 5 mm higher than the cover grating.

Instructions and Regulations

Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.


For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas
DIN 19580 „Drainage channels for vehicular and pedestrian areas
RStO „Guidelines for the standardisation of the superstructure of vehicular areas
DIN EN 206-1 „Concrete. Specification, performance, production and conformity
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1

SELF ECO channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 12 cm
Height 8 cm
Weight 3.2 - 6.3 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp Snap-in fastening
Load capacity Galvanised slotted grating HEELGUARD cl. A15, cast-slotted grating HEELGUARD cl. B125

Channel dimensions for SELF ECO

Image Gutter size for SELF ECO channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN Snap-in fastening

Image ANRIN Snap-in fastening

Decades of experience and detailed product development in the areas of assembly, maintenance and cleaning of drainage systems have produced impressive solutions for permanent fastening technologies.

ANRIN Snap-in fastenings are optimised for the specific load classes and unite reliability and high quality with functional design.

Accesseorie for SELF ECO

Image Channel body

Channel body

SELF ECO

Image End cap

End cap

with DA / OD 110 NBR seal rings

SELF ECO

Image End cap PP made of Polypropylene

End cap PP made of Polypropylene

grey

SELF ECO

Image End cap PP made of Polypropylene

End cap PP made of Polypropylene

black

SELF ECO

Image Sump unit

Sump unit

SELF ECO

Accessories dimensions for SELF ECO sump unit

Image Accessories dimensions for SELF ECO sump unit

SELF installation instructions

With ANRIN drainage systems, accumulating rainwater should be drained safely and quickly. Moreover, the structural elements have the task of accommodating dynamic loads arising from traffic-related demands and dispersing them to the area of the foundation.

Amongst others, the following technical rules and regulations in their respective valid versions must be observed for the selection, design and installation of ANRIN drainage systems.


The following installation guidelines are schematic representations. These are provided as examples and are non-binding. The information provided here is based on our long-term experience in excavation and road construction as well as the state-of-the-art technology. Despite this, designers and planners are always obligated to check the products and the installation instructions for their appropriateness. The example details are simplified recommendations for execution.

Constructions are to be re-created on a project-specific basis.

Image 1 SELF ECO Installation guide

1.

Excavate trench. Fill in and pre-compact base course. Apply concrete pad, 3 parts sand + 1 part cement + 1 part water, to base course.

Image 2 SELF ECO Installation guide

2.

Connect pipe connections to the pipeline.

Image 3 SELF ECO Installation guide

3.

Place channel elements and sump unit on the concrete pad. Align components so that they are level.

Image 4 SELF ECO Installation guide

4.

Position end caps.

Image 5 SELF ECO Installation guide

5.

Complete the series and ensure the level alignment of the components.

Image 6 SELF ECO Installation guide

6.

Backfill the concrete pad.

Image 7 SELF ECO Installation guide

7.

Lay the paving.

Image 8 SELF ECO Installation guide

8.

The surface should be 2 to 5 mm higher than the cover grating.

Instructions and Regulations

Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.


For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas
DIN 19580 „Drainage channels for vehicular and pedestrian areas
RStO „Guidelines for the standardisation of the superstructure of vehicular areas
DIN EN 206-1 „Concrete. Specification, performance, production and conformity
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1
