Sand collecting channel

Material: polymer concrete
Length: 100 cm

The ANRIN SPORT sand collecting channel consists of a polymer concrete trough with surrounding steel edge and a cover made of steel meshed grating with a rubber honeycomb mat on top. To separate the sand pit from plastic-coated adjacent areas, single or double row installation is recommended. This prevents excessive soiling of the plastic coating.

Product specifications Sand collecting channel Length compensation End cap
Material polymer concrete polymer concrete polymer concrete
Lenght 100 cm 67.0 / 112.0 cm -
Width 50 cm 50 cm 50 cm
Height 14.0 cm 14.0 cm 14.0 cm
Weight 43.0 kg 48.0 kg 2.9 kg

Operation area

Area of application
Sand collecting channel for the collection of sand from long jump pits
ANRIN SPORT Sand collecting channel

Channel with steel edge and rubber mat on steel grating, L = 100 cm

Art. 04571000
Channel with steel edge and rubber mat on steel grating, L = 112 cm

Art. 04572000
Channel with steel edge and rubber mat on steel grating, L = 67 cm

Art. 04571670
End cap with steel edge

Art. 04573000

Installation guides

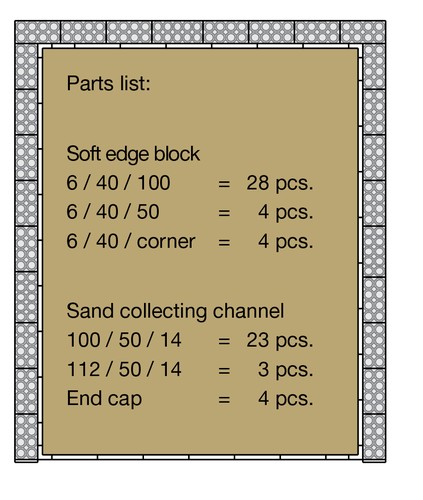

Laying plan

or edging for long jump using the example of a pit with
clear dimensions of 9.00 x 7.00 m.
