Turf edge plate

Material: polymer concrete
Length: 100 cm

The ANRIN SPORT polymer concrete lawn edge plate is specially constructed for the external edging of running tracks in arenas. The interlocking groove on one side enables the plastic covering to be processed precisely. For simple and clean installation, the end faces are equipped with a tongue and groove system. The profiled underside of the lawn edge plate and 4 symmetrically arranged stirrup anchors guarantee a permanent and frost-proof connection to the strip foundation.

Product specifications Turf edge plate Turf edge plate, curved, R = 44.1
Material polymer concrete polymer concrete
Lenght 100 cm 100 cm
Width 25.0 cm 25.0 cm
Height 6.5 cm 6.5 cm
Weight 19.0 kg 19.0 kg

Operation area

Area of application

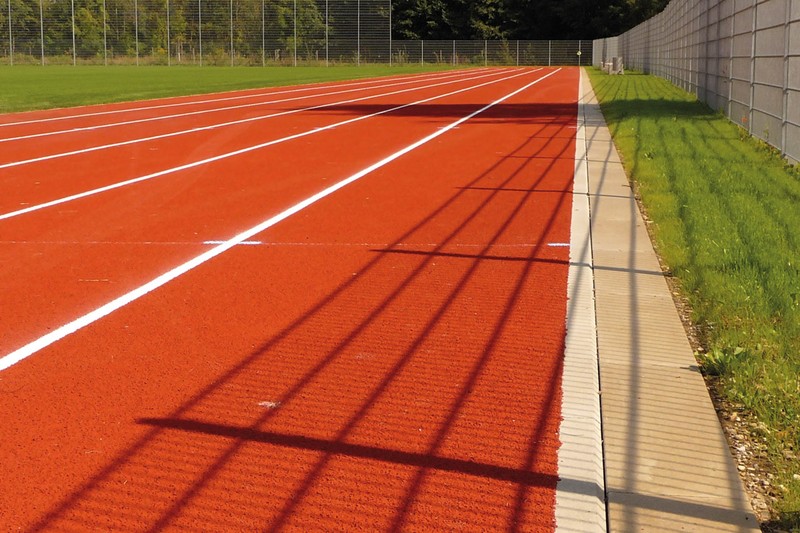

Outdoor edging of running tracks in arenas

Edging of playing areas

ANRIN SPORT turf edge plate
Turf edge plate, straight, with 4 stirrup anchors, interlocking groove Art. 04204500
Turf edge plate, curved (R = 44.10 m), with 4 stirrup anchors, interlocking groove Art. 04204600

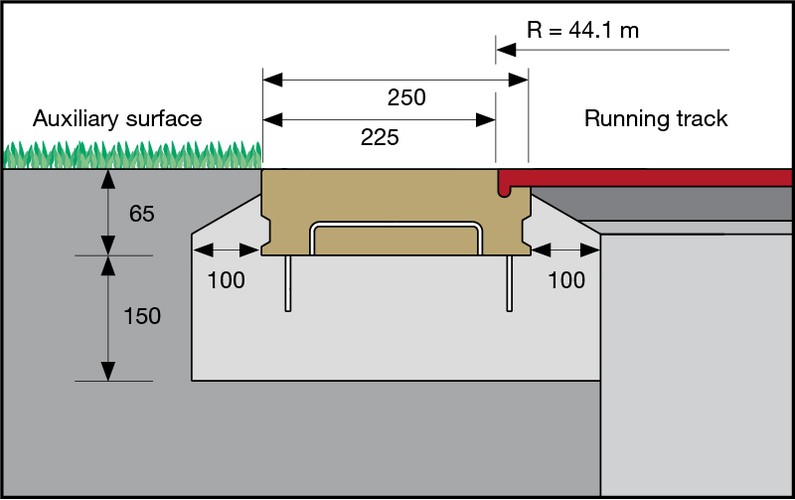

Installation guides


ANRIN SPORT
Turf edge plate

• with 4 stirrup anchors
• with interlocking groove
• straight/curved (R = 44.1 m)
