PRODUCT INFORMATION
SHORT DESCRIPTION
Open channels with upstand on one side are used for drainage of arenas with elevated grass playing fields.
In the segment area, open channels without upstands are used, as the running track and segments are generally at the same height. In the ANRIN SPORT drainage system NW 125, the polymer concrete channel body and a HDPE plastic cover form a sensible combination of drainage and running-track bordering. The covers comply with DIN 18035 and international athletics regulations. In the ANRIN SPORT drainage system NW 125, the polymer concrete channel body and a HDPE plastic cover form a sensible combination of drainage and running-track bordering.Material polymer concrete Length 100 cm Width 17.5 cm Height 24 cm Weight 18 kg Nominal width 100 -
SERVICE AND CONTACT
Do you have questions about the product?
Get in touch with us
Tel.: +49 (0) 29 47.97 81-0
Mail: info@anrin.com
Find your local contact person through our ZIP code search
Accessories
Plastic cover
RPE-HD (white)
straight / curved (R = 36.5 m)
Sump unit 125 K
with upturn on one side
Perforations DA/OD 110/160
Operation area
| Areas of application |
| Arenas with raised playing field and/or segments |
| Tracks with raised auxiliary surfaces |
Installation guide
ANRIN SPORT
drainage system 125
Channel 125 E/F
• straight / curved
• plastic cover (white)

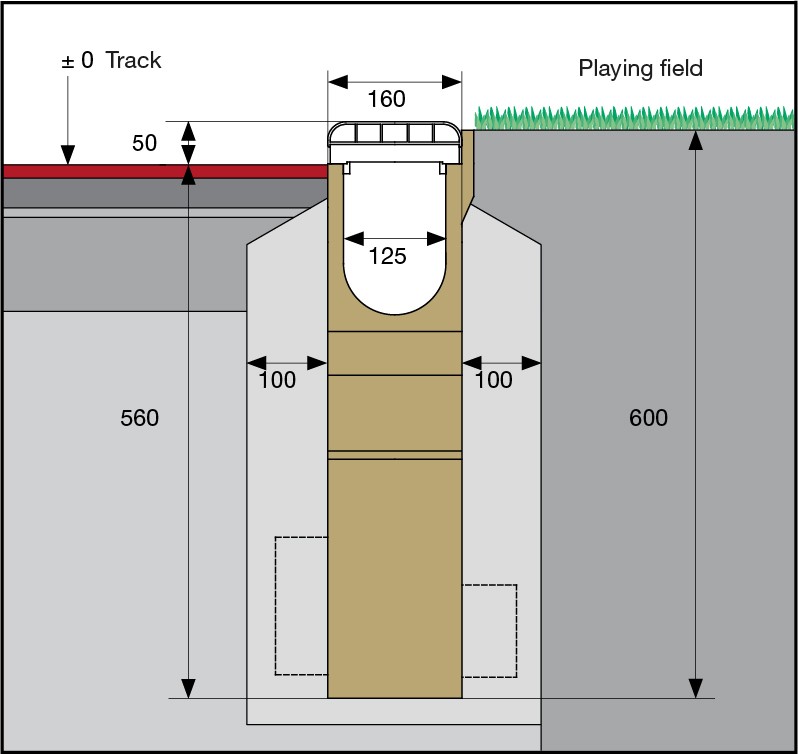

ANRIN SPORT
drainage system 125
Sump unit 125 K,
with raised edges (4 cm)
• plastic cover (white)
