Tray channel
Length: 100 cm
With their flat and open cross-section, ANRIN SPORT trough channels made of polymer concrete are a sensible alternative for the drainage of sports facilities with unbound surfaces.
Easy to clean as a gutter without a cover, it is a safe and clean solution for field edging thanks to the favourable height-width ratio. Each gutter is equipped with two stirrup anchors, which guarantee a stable connection with the ground. They are installed into a 15 x 35 cm concrete bed; there is an expansion joint every 20 m.
| Product specifications | Tray channel | Sump unit |
| Material | polymer concrete | polymer concrete |
| Lenght | 100 cm | 50 cm |
| Width | 25.0 cm | 25.0 cm |
| Height | 7.0 cm | 37.5 cm |
| Weight | 19.0 kg | 22.0 kg |
Sump unit tray channel
with plastic grating on top
Operation area
|
Area of application
|
|
Arenas with level playing fields
|
|
Playgrounds and sports fields with a grass/synthetic surface combination
|
|
Sandy or granulated artificial turf pitches
|
|
ANRIN SPORT tray channel
|
|
|
Tray channel, straight, L = 100 cm, in the straight sections
|
Art. 04211010
|
|
Tray channel, curved, R = 36.5 m, in the transition area field/segment and in the segments
|
Art. 04212010
|
|
Plastic grating OvalGrip, PA, L = 50 cm, for insertion into the sump unit
|
Art. 01004140
|
|
Sump unit with PE bucket and preform DA/OD 110 with sealing ring
|
Art. 04215000
|

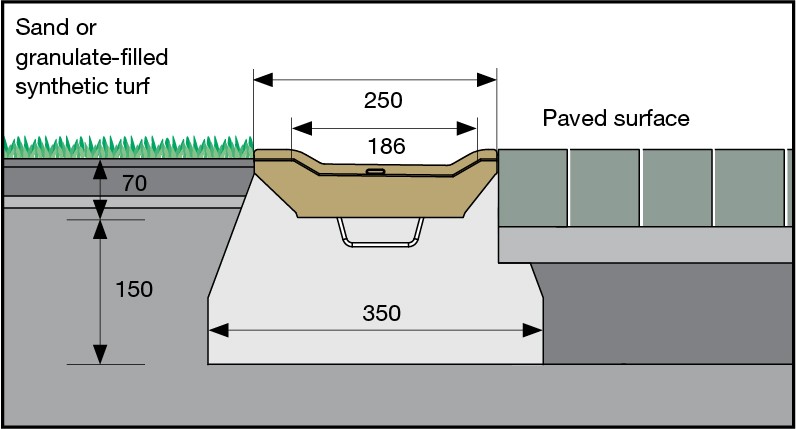

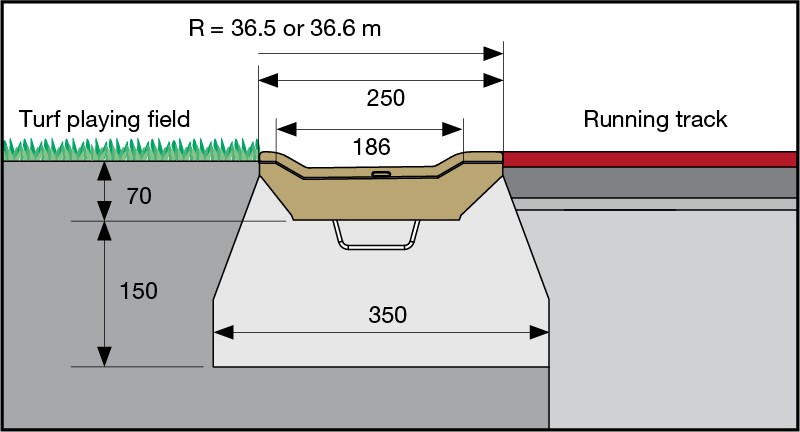

Installation guides
ANRIN SPORT
Tray channel
• with two stirrup anchors
• straight/curved (R = 36.5 m)
ANRIN SPORT
Tray channel
• with two stirrup anchors
• straight/curved (R = 36.5 m)

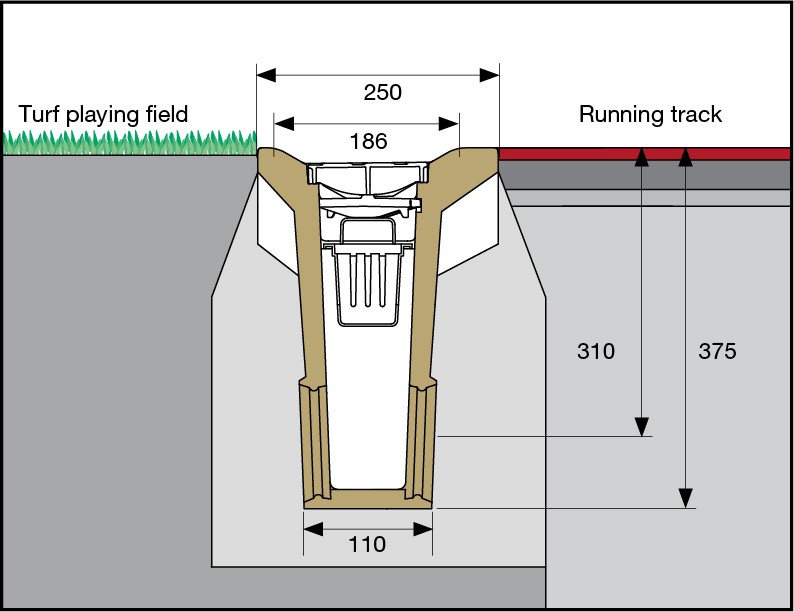

ANRIN SPORT
Tray channel sump unit
• with moulded tray channel
• with OvalGrip plastic grating on top
• with PE bucket and preform DA/OD 110
• pipe connection optionally left or right
• optionally with expansion joint strips on the end face
