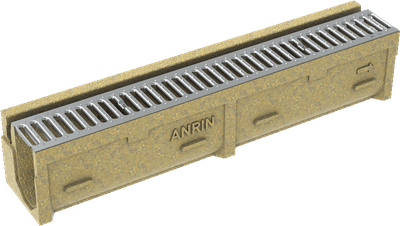

NW 100 Synthetic turf
Length: 100 cm
The NW 100 artificial turf of the ANRIN SPORT drainage system offers the optimal solution for the drainage of all modern artificial turf systems. Two important functions are covered simultaneously by a single component here: the fixation of the artificial turf and the drainage of the adjacent areas.
Damage to the ground material is avoided thanks to the screwless clamping. By dispensing with the arrangement of metal parts on the surface, the greatest possible safety during sports is guaranteed. The channel cross-section, which has no annoying fastening components for covers and locks, facilitates cleaning and maintenance processes.
| Product specifications | NW 100 | Sump unit | Cover |
| Material | polymer concrete | polymer concrete | polymer concrete |
| Lenght | 100 cm | 50 cm | 100 cm |
| Width | 18.8 cm | 18.8 cm | 13.0 |
| Height | 20.0 cm | 56.3 cm | - |
| Weight | 25.0 kg | 27.5 kg | - |
Operation area
|

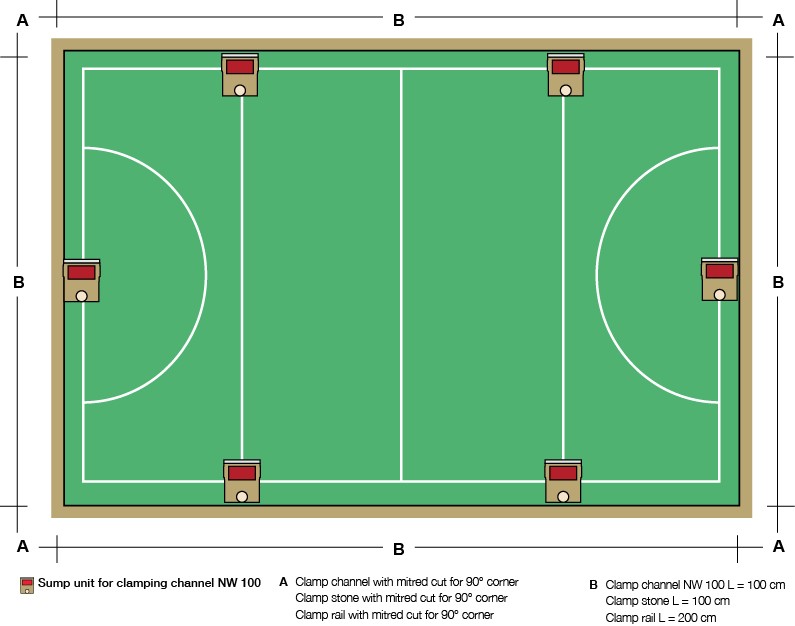

Area of application
|
|
rectangular synthetic turf pitches with adjacent areas at the same height
|
|
ANRIN SPORT drainage system NW 100 synthetic turf
|
|
|
Clamping channel NW 100, L = 100 cm, with slotted steel grating, galvanised
|
Art. 04401001
|
|
Sump unit with inlet opening, with dirt trap bucket and preform for pipe socket DA/OD 110
|
Art. 04403001
|
|
Mitre cut on clamping channel NW 100 with web grating for 90° corners
|
Art. 01307600
|

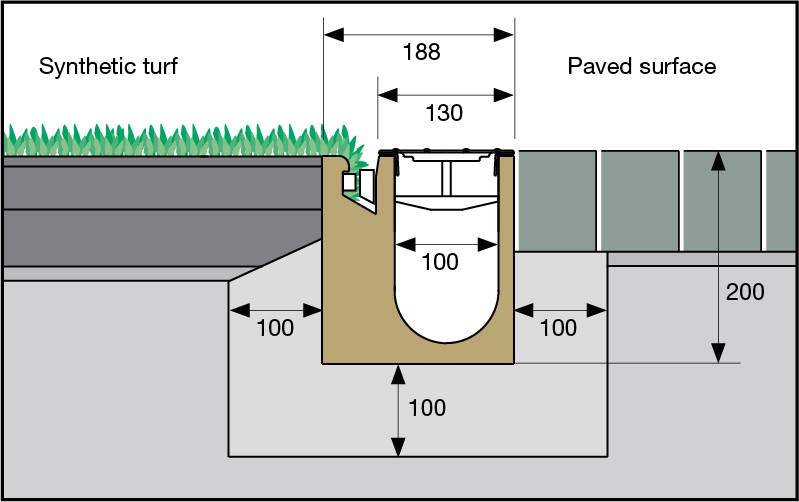

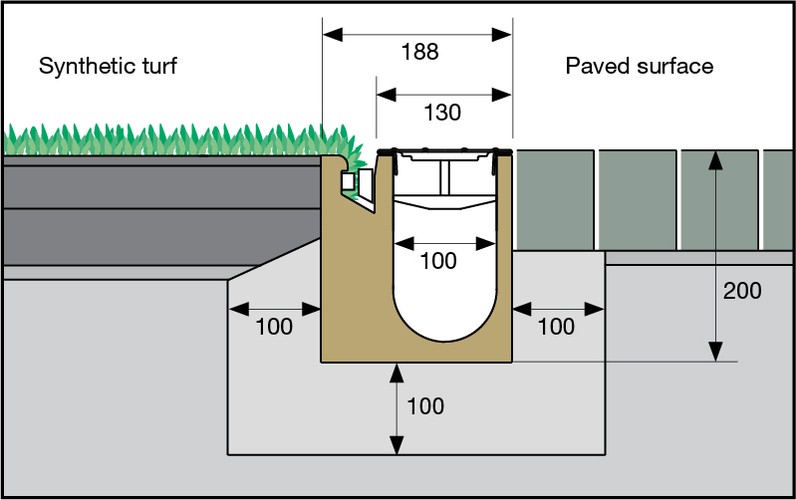

Installation guides
ANRIN SPORT
Drainage system NW 100 synthetic turf
Clamping channel NW 100
• for rectangular synthetic turf pitches with adjacent areas at the same height
• straight
• slotted steel grating
