The NW 125 slotted channel was developed for the increasing number of arenas with level playing fields. This system ensures maximum variability with regard to different areas of the installation. The elimination of tripping hazards increases the comfort of use and simplifies maintenance. In order to comply with the regulations of the International Association of Athletics Federations, it is sufficient, where necessary (e.g. in case of a competition) to provide the channel bodies along the inside of the running track with a mobile frame or plastic cover.
Product specifications | 128 C.5 - C.8 | Cover |
Material | polymer concrete | polymer concrete |
Lenght | 100 cm | 100 cm |
Width | 16.0 cm | 16.0 cm |
Height | 18.7 - 20.0 cm | 5.0 cm |
Weight | 24.0 - 26.0 kg | - |

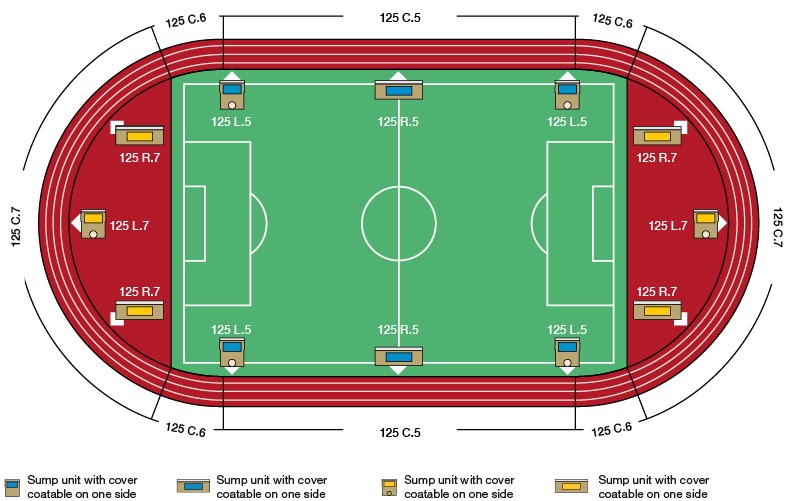

Operation area
Area of application
|
Arenas with field, running track and/or segments at the same height
|
Bundeswehr Sports Facilities
|
Installation guides

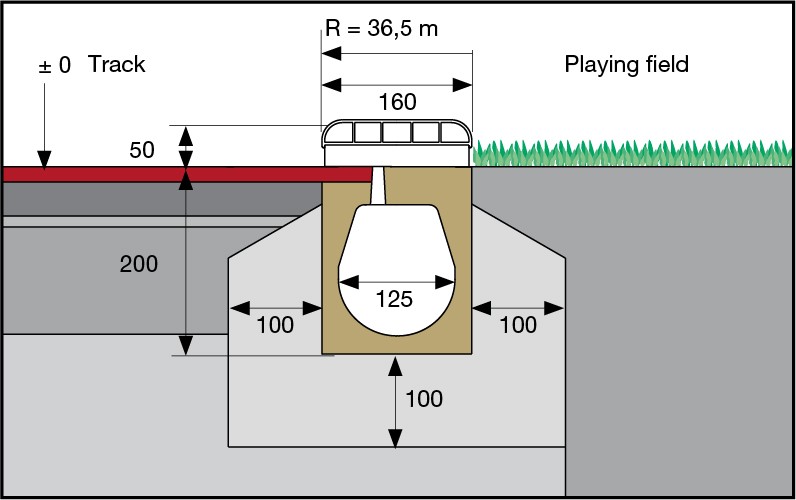

ANRIN SPORT
drainage system 125
Slotted channel
channel 125 C.5/C.6

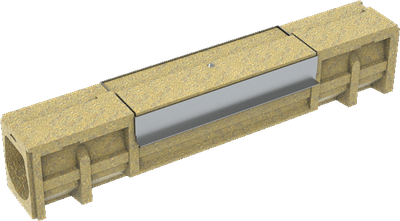

channel 125 R.5/R.6
• straight/curved
• plastic cover (white)
• can be coated on one side

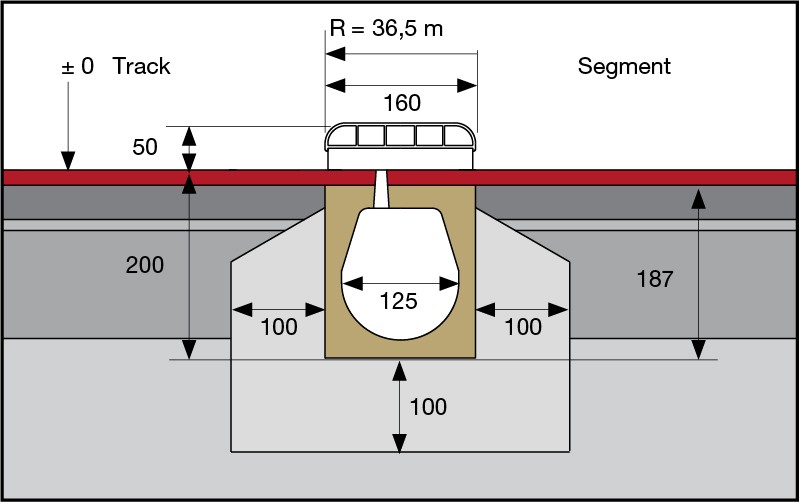

ANRIN SPORT
drainage system 125
Slotted channel
channel 125 C.7/C.8
channel 125 R.7/R.8
• straight/curved
• plastic cover (white)
• can be coated on both sides

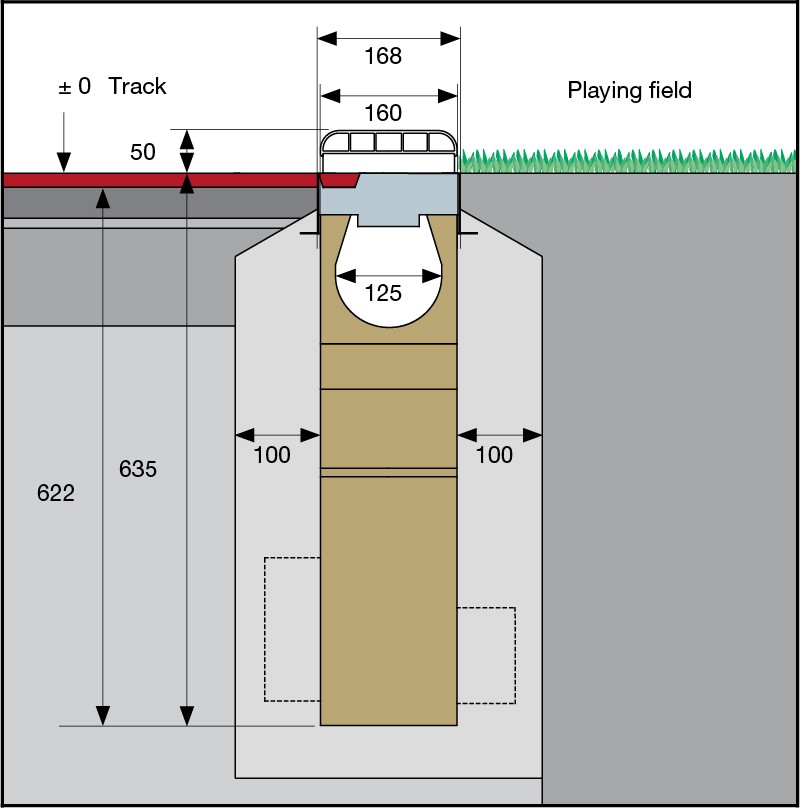

ANRIN SPORT
drainage system 125
Slotted channel
Sump unit type 125 L.5
• plastic cover (white)

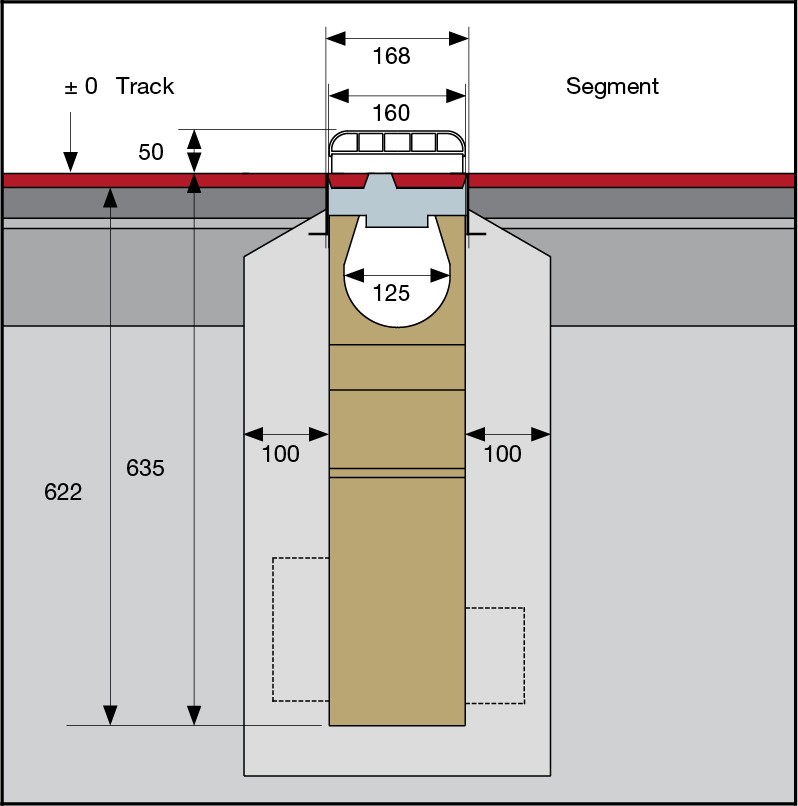

ANRIN SPORT
drainage system 125
Slotted channel
Sump unit type 125 L.7
• plastic cover (white)
Accessories
Plastic cover
RPE-HD (white)
straight / curved (R = 36.5 m)
Channel 125 (R.5 - R.8)
Sump unit 125 L.5
with aluminum angle frame and one-sided
coatable slotted cover with
PE sludge bucket and preforms
DA/OD 110/160
Channel 125 (R.5 - R.8)
Sump unit 125 L.7
with aluminum angle frame and double-sided
coatable slotted cover with
PE sludge bucket and preforms
DA/OD 110/160
Channel 125 (R.5 - R.8)
Product specifications | Sump unit | Cover |
Material | polymer concrete | plastic |
Lenght | 50 cm | 100 cm |
Width | 16.0 cm | 16.0 cm |
Height | 63.5 cm | 5.0 cm |
Weight | 29.9 kg | - |
