Open channels with upstand on one side are used for drainage of arenas with elevated grass playing fields.
In the segment area, open channels without upstands are used, as the running track and segments are generally at the same height. In the ANRIN SPORT drainage system NW 125, the polymer concrete channel body and a HDPE plastic cover form a sensible combination of drainage and running-track bordering. The covers comply with DIN 18035 and international athletics regulations. In the ANRIN SPORT drainage system NW 125, the polymer concrete channel body and a HDPE plastic cover form a sensible combination of drainage and running-track bordering.
Product specifications | 125 A/B | Cover |
Material | Resin concrete | Resin concrete |
Lenght | 100 cm | 100 cm |
Width | 16.0 cm | 16.0 cm |
Height | 20.0 cm | 5.0 cm |
Weight | 16.0 kg | - |
Cover

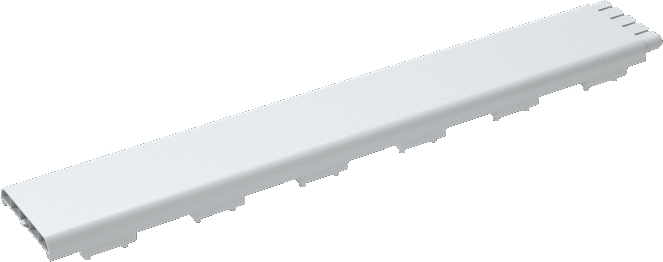

Plastic cover
PE-HD, white

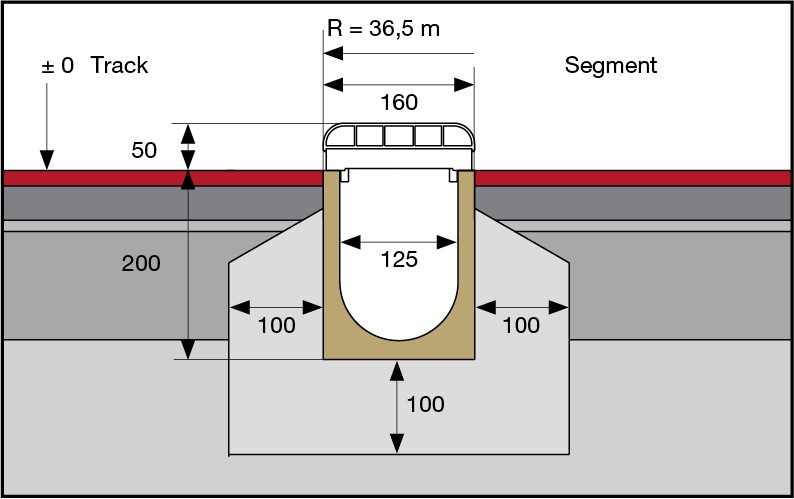

straight / curved (R = 36.5 m)
Operation area
Area of application
|
Arenas with elevated playing fields and/or segments
|
Sprint tracks with elevated secondary surfaces
|
ANRIN SPORT drainage system 125, open channel
|
|
Channel type 125 A, without upstand, in the straight sections
|
Art. 04111000
|
Plastic cover, straight
|
Art. 04370000
|
Channel type 125 B, without upstand, in the transition area between playing field/segment and/or in the segment
|
Art. 04112000
|
Plastic cover, curved
|
Art. 04371000
|
|
|
Alternative for surfaces at the same height:
|
|
Channel type 125 C.3, slotted channel, in segment
|
Art. 04112310
|
Plastic cover, curved
|
Art. 04374000
|
Channel type 125 E, with upstand, in the straight sections
|
Art. 04113000
|
Plastic cover, straight
|
Art. 04370000
|
Channel type 125 F, with upstand, in the transition area of the playing field/segment
|
Art. 04114000
|
Plastic cover, curved
|
Art. 04371000
|

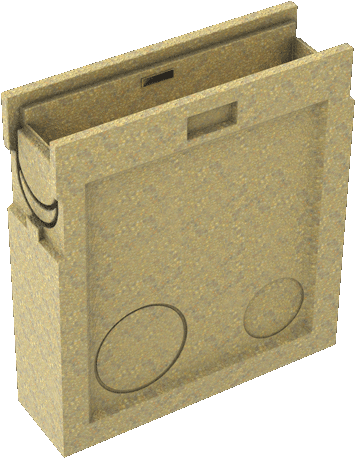

Sump unit type 125 J, without upstand, in segment
|
Art. 04117000
|
Sump unit type 125 K, with upstand, in the straight lines
|
Art. 04118000
|
Installation guides
ANRIN SPORT
drainage system 125
Channel 125 A/B
• straight/curved
• plastic cover (white)
ANRIN SPORT
drainage system 125
Sump unit 125 J,
without upturn
• plastic cover (white)
Accessories
Plastic cover
RPE-HD (white)
straight / curved (R = 36.5 m)
Channel 125 (A/B)
Sump unit 125 J
without upturn
Perforations DA/OD 110/160
Channel 125 (A/B)
Product specifications | Sump unit | Cover |
Material | resin concrete | plastic |
Length | 50 cm | 100 cm |
Width | 16.0 cm - 17.5 cm | 16.0 cm |
Height | 58.5 - 62.5 cm | 5.0 cm |
Weight | 29.0 - 29.6 kg | - |
