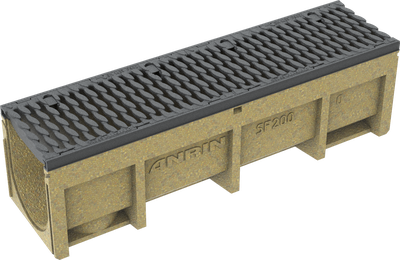

Heavy duty channel
SF-200
Edge Rail: KTL-coated
Length: 50 / 100 cm
Nominal width: 200 mm
| SF-200 Heavy duty channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 26.4 cm |
| Height | 13.0 cm. 29.0 - 34.0 cm |
| Weight | 25.6 - 54.0 kg |
| Nominal width | 200 |
| Joint formation | UNILINK®- Joint |
| Clasp | RapidLock fastening |
| Load capacity | D400 (test force 400 kN), E600 (test force 600 kN), F900 (test force 900 kN) |

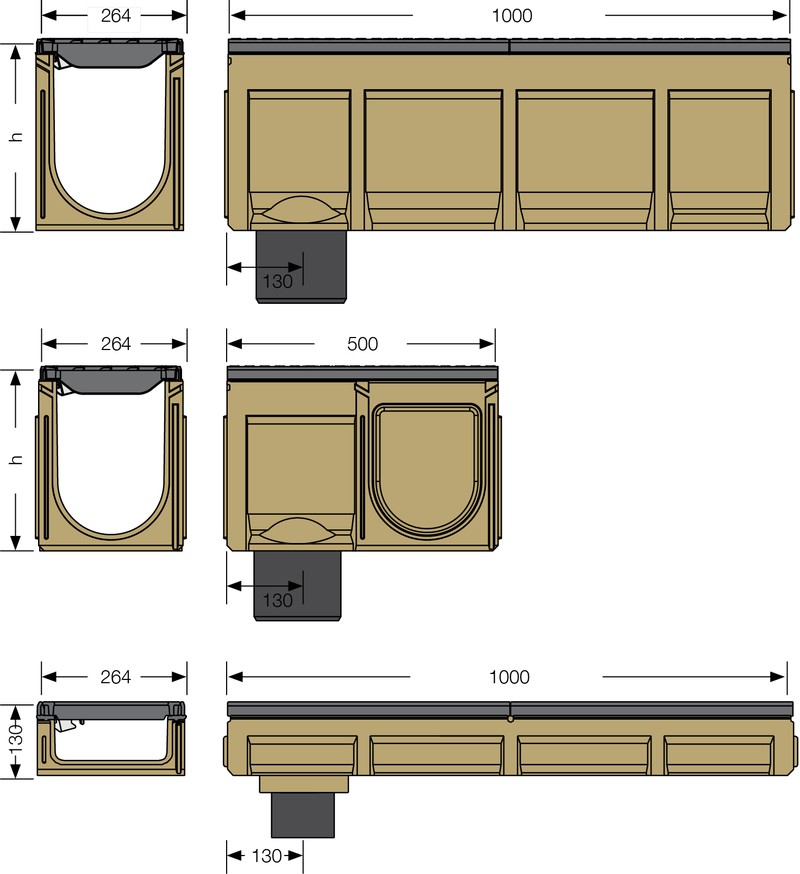

Channel dimensions for SF-200
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN RapidLock fastening
This patented fastening developed in-house by ANRIN combines all the important functions of a grating lock for the accommodation of heavy loads in a stable and functional component. In addition, it is installed unobtrusively and harmonically into the attractive surface of the cast iron grating.
Advantages:
· Easy to install and lock in place
· Self-locking Rapidlock lacks the grating safely in place for traffic
· Better accommodation of traffic loads with intermeshing of grating and channel body
· Reliable function even when heavily soiled
· It is locked in place and lifted out without special tools
Accessorie for SF-200
Channel body
SF-200

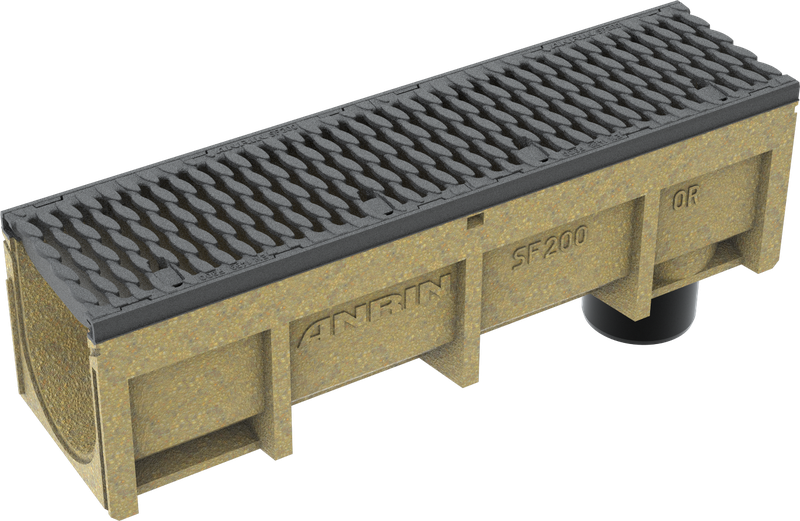

Channel body
100 cm
with pipe socket
SF-200
End cap
with DA / OD 110
poured pipe socket
SF-200
End cap
closed
SF-200
Pipe socket
SF-200
Seal set
SF-200
Sump unit
with DA / OD 110
poured pipe socket
SF-200
Accessories dimensions for SF-200 sump unit
