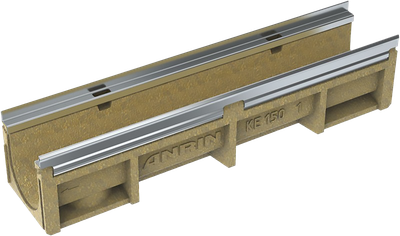

Reinforced edge channel
KE-150
Edge Rail: Stainless steel
Length: 50 / 100 cm
Nominal width: 150 mm

Matching grates
KE-150 Reinforced edge channel product specifications | |
---|---|
Material | polymer concrete |
Length | 50 / 100 cm |
Width | 21.4 cm |
Height | 13.0. 22.0 - 32.0 cm |
Weight | 17.0 - 41.5 kg |
Nominal width | 150 |
Joint formation | UNILINK®- Joint |
Clasp | SnapLock fastening |
Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
ANRIN UNILINK®-Joint


The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN SnapLock fastening

Decades of experience and thorough product development in the areas of assembly, maintenance and cleaning of drainage systems have given rise to outstanding solutions for durable fastening technology.
ANRIN grating fastenings are optimised for the respective load class and combine safety and brand quality with functional design.
The TwistLock fastening is used for grating types for channels with a nominal width of 100 mm.
Advantages:
· Put in place – press on – snap in place
· Assembly without special tools
· Impervious to transverse forces
· Non-corrosive stainless steel springs
· Reliable function even when heavily soiled
· Grating and channel body intermesh to form a sturdy unit
Accessorie for KE-150

Channel body
100 cm
with pipe socket
KE-150

Channel body
KE-150

End cap
closed
KE-150

End cap
with DA / OD 160 pipe socket
KE-150

Pipe socket
KE-150

Step connector
KE-150

Sump unit
with dirt trap bucket
DA / OD 160/200 NBR seal rings
KE-150
