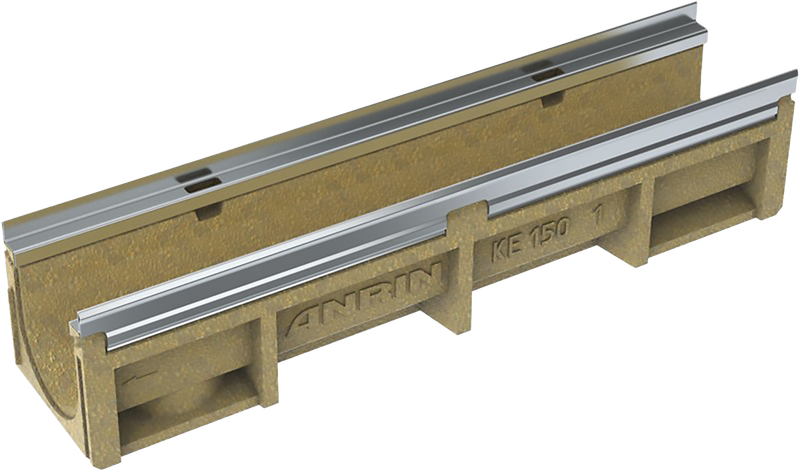

Reinforced edge channel
KE-150
Material: polymer concrete
Edge Rail: Galvanised steel
Length: 50 / 100 cm
Nominal width: 150 mm
Edge Rail: Galvanised steel
Length: 50 / 100 cm
Nominal width: 150 mm

Matching grates

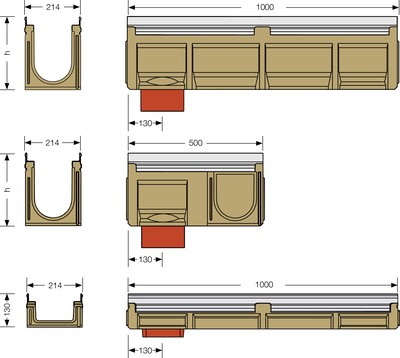

KE-150 Reinforced edge channel product specifications | |
---|---|
Material | polymer concrete |
Length | 50 / 100 cm |
Width | 21.4 cm |
Height | 13.0. 22.0 - 32.0 cm |
Weight | 17.0 - 41.5 kg |
Nominal width | 150 |
Joint formation | UNILINK®- Joint |
Clasp | SnapLock fastening |
Load capacity | A15 (test force 15 kN) to E600 (test force 600 kN) |
