Slotted top channels Z-150

Material: galvanised steel, stainless steel
Length: 50, 100 cm
Load class: A15, B125, C250, D400*
Image Slotted top channels Z-150

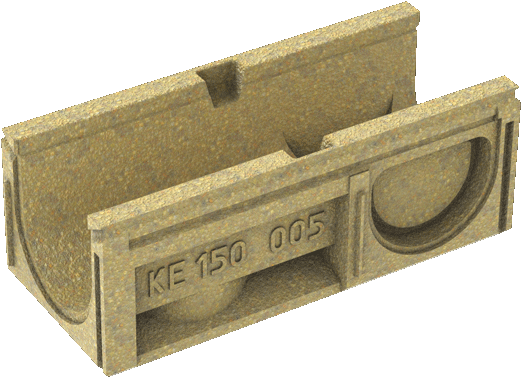

Matching channel body

Z-150 Slotted top channels
Load class:
A15, B125, C250, D400*
Image Slotted top channels

ANRIN slotted top channels

A drainage system for customers who place greater value on aesthetic solutions. It consists of the actual resin concrete channel body and a slotted top made of galvanised or stainless steel. This is formed by 2 angled metal plates. The shaft ends in a narrow slot. The metal plates are covered with panels or paving during installation so that only the slot is visible at the surface. This channel system is primarily used decoratively in city settings for prestigious urban development and is suitable for traffic loads of up to D400*.

Z-150 Slotted top channels Product specifications
Material polymer concrete
Length 50 und 100 cm
Width 21.4 cm
Height 18.8 cm
Nominal width 150
Load capacity A15 (Prüfkraft 15 kN) bis D400 (Prüfkraft 400 kN)

Channel dimensions for Z-150

Image Gutter size for Z-150 Slotted top channels

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

Accessorie for Z-150

Image Access hook

Access hook

for removal of the access top

Z-150

Image End cap

End cap

closed

Z-150

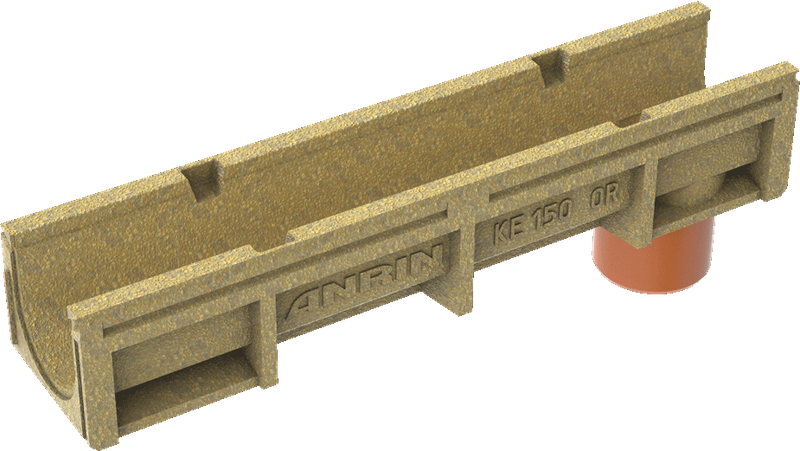

Image End cap

End cap

with DA / OD 110 pipe socket

Z-150

Image Mesh insert

Mesh insert

Lenght: 100 cm

Z-150

Image Step connector

Step connector

Z-150

Image Sump unit

Sump unit

DA /OD 160 and 200 drains,
with moulded-in NBR rings,
with dirt trap bucket

Z-150

Accessories dimensions for Z-150 sump unit

Image Accessories dimensions for Z-150 sump unit
