Slotted top channels Z-100

Material: galvanised steel, stainless steel
Length: 50, 100 cm
Load class: A15, B125, C250
Image Slotted top channels Z-100

Matching channel body

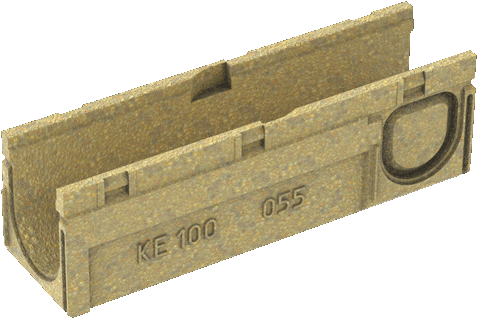

Z-100 Slotted top channels
Load class:
A15, B125, C250

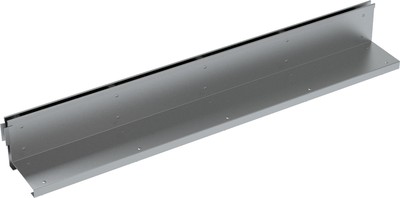

Image Slotted top channels

ANRIN slotted top channels

A drainage system for customers who place greater value on aesthetic solutions. It consists of the actual resin concrete channel body and a slotted top made of galvanised or stainless steel. This is formed by 2 angled metal plates. The shaft ends in a narrow slot. The metal plates are covered with panels or paving during installation so that only the slot is visible at the surface. This channel system is primarily used decoratively in city settings for prestigious urban development and is suitable for traffic loads of up to C250.

Z-100 Slotted top channels Product specifications
Material polymer concrete
Length 50 und 100 cm
Width 13.6 cm
Height 15.3 cm
Nominal width 100
Load capacity A15 bis C250

Channel dimensions for Z-100

Image Gutter size for Z-100 Slotted top channels

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

Accessorie for Z-100

Image Access hook

Access hook

for removal of the access top

Z-100

Image End cap

End cap

closed

Z-100

Image End cap

End cap

with DA / OD 110 pipe socket

Z-100

Image Mesh insert

Mesh insert

Lenght: 100 cm

Z-100

Image Step connector

Step connector

Z-100

Image Sump unit

Sump unit

DA /OD 110 and 160 drains,
with moulded-in NBR rings,
with dirt trap bucket

Z-100

Accessories dimensions for Z-100 sump unit

Image Accessories dimensions for Z-100 sump unit
