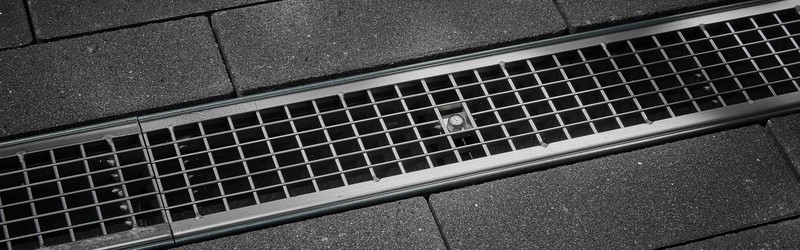

Mesh grating (MW 20 x 20 mm)

Material: galvanised steel, stainless steel
Length: 50, 100 cm
Load class: C250, D400*

Matching channel body

KE-150 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
KE-150 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
KE-150 KTL Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel

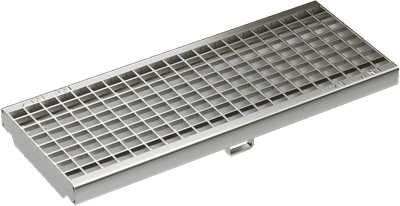

Image Mesh grating (MW 20 x 20 mm)

The grate is representative of the entire design line.

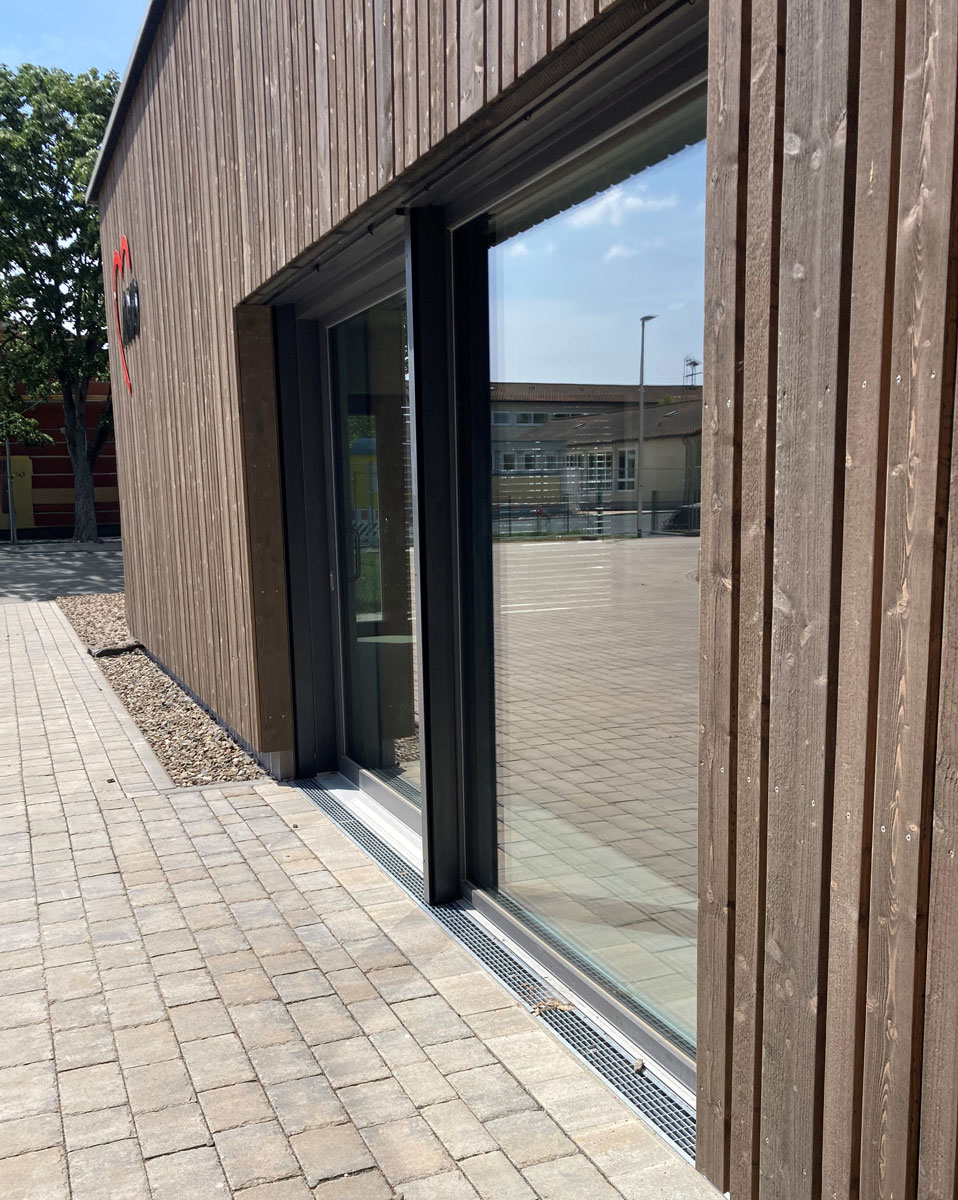

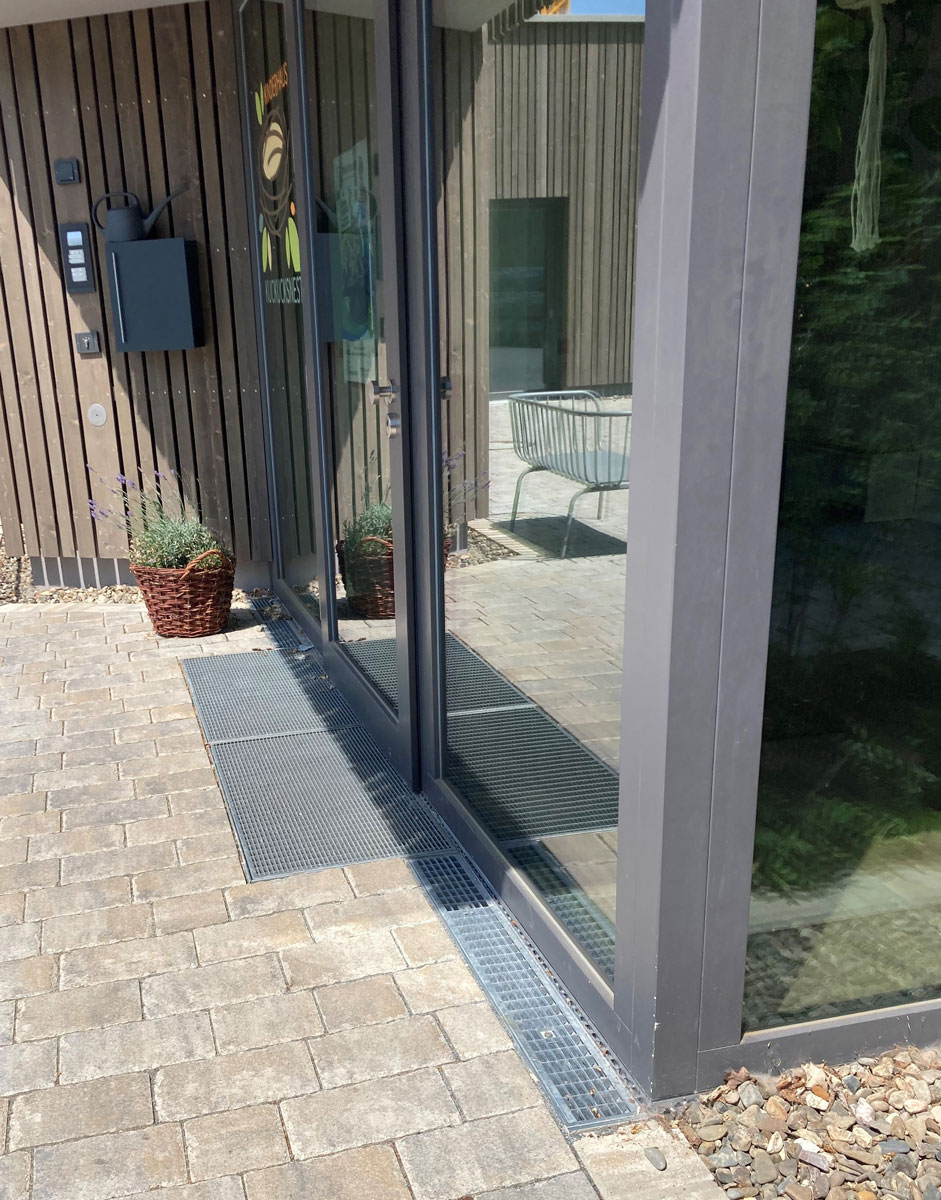

ANRIN reinforced edge channels

A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available. The reinforced edge channels in nominal widths of 100, 150, 200 and 300 are available for the efficient drainage of rainwater from sealed surfaces.

KE-150 Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 21.4 cm
Height 13.0. 22.0 - 32.0 cm
Weight 17.0 - 41.5 kg
Nominal width 150
Joint formation

UNILINK®- Joint

Clasp SnapLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)
Grating Longitudinal Grating, Longitudinal profile grating, Mesh grating (MW 20 x 20 mm), Slotted grating HEELGUARD

Channel dimensions for KE-150

Image Gutter size for KE-150 Reinforced edge channel

Accessories dimensions for KE-150 sump unit

Image Accessories dimensions for KE-150 sump unit
KE-150 Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 21.4 cm
Height 13.0. 22.0 - 32.0 cm
Weight 17.0 - 41.5 kg
Nominal width 150
Joint formation

UNILINK®- Joint

Clasp SnapLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)
Grating Slotted grating OvalGrip Design

Channel dimensions for KE-150

Image Gutter size for KE-150 Reinforced edge channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN SnapLock fastening

Image ANRIN SnapLock fastening

Decades of experience and thorough product development in the areas of assembly, maintenance and cleaning of drainage systems have given rise to outstanding solutions for durable fastening technology.

ANRIN grating fastenings are optimised for the respective load class and combine safety and brand quality with functional design.

The TwistLock fastening is used for grating types for channels with a nominal width of 100 mm.

Advantages:

·  Put in place – press on – snap in place
·  Assembly without special tools
·  Impervious to transverse forces

·  Non-corrosive stainless steel springs
·  Reliable function even when heavily soiled
·  Grating and channel body intermesh to form a sturdy unit

Accessorie for KE-150

Image Channel body

Channel body

100 cm
with pipe socket

KE-150

Image Channel body

Channel body

KE-150

Image End cap

End cap

closed

KE-150

Image End cap

End cap

with DA / OD 160 pipe socket

KE-150

Image Pipe socket

Pipe socket

KE-150

Image Step connector

Step connector

KE-150

Image Sump unit

Sump unit

with dirt trap bucket
DA / OD 160/200 NBR seal rings

KE-150

Accessories dimensions for KE-150 sump unit

Image Accessories dimensions for KE-150 sump unit
KE-150 KTL Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 21.4 cm
Height 13.0 cm. 17.0 cm. 22.0 - 32.0 cm
Weight 17.0 - 41.5 kg
Nominal width 150
Joint formation

UNILINK®- Joint

Clasp SnapLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN SnapLock fastening

Image ANRIN SnapLock fastening

Decades of experience and thorough product development in the areas of assembly, maintenance and cleaning of drainage systems have given rise to outstanding solutions for durable fastening technology.

ANRIN grating fastenings are optimised for the respective load class and combine safety and brand quality with functional design.

The TwistLock fastening is used for grating types for channels with a nominal width of 100 mm.

Advantages:

·  Put in place – press on – snap in place
·  Assembly without special tools
·  Impervious to transverse forces

·  Non-corrosive stainless steel springs
·  Reliable function even when heavily soiled
·  Grating and channel body intermesh to form a sturdy unit

Accessories

Image Channel body

Channel body

KE-150 KTL

Image Channel body

Channel body

100 cm
with pipe socket

KE-150 KTL

Image End cap

End cap

closed

KE-150 KTL

Image End cap

End cap

with DA / OD 160 pipe socket

KE-150 KTL

Image Pipe socket

Pipe socket

KE-150 KTL

Image Seal set

Seal set

KE-150 KTL

Image Step connector

Step connector

KE-150 KTL

Image Sump unit

Sump unit

with dirt trap bucket
DA / OD 160/200 NBR seal rings

KE-150 KTL
