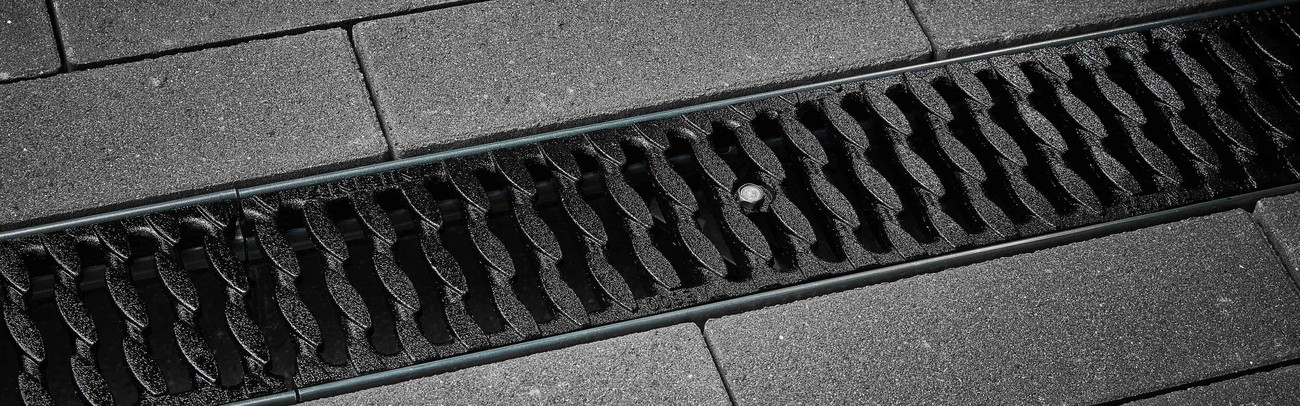

Slotted grating OvalGrip Design

Material: ductile-iron (KTL-coated)
Length: 50 cm
Load class: C250, E600*

Matching channel body

KE-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
KE-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
KE-100 KTL Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
KC-100 Reinforced edge channel
Load class:
A15, B125, C250
Image Reinforced edge channel
KF-100 Reinforced edge channel
Load class:
A15, B125, C250, D400*, E600*
Image Reinforced edge channel
Image Slotted grating OvalGrip Design

The grate is representative of the entire design line.

ANRIN reinforced edge channels

A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available. The reinforced edge channels in nominal widths of 100, 150, 200 and 300 are available for the efficient drainage of rainwater from sealed surfaces.

KE-100 Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 13.6 cm
Height 6.0 cm. 8.0 cm. 10.0 cm / 15.0 - 25.0 cm
Weight 9.5 - 25.5 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp TwistLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)
Grating CELTIC, Design grating WIRE, LEAF, Longitudinal–bar grating, Longitudinal profile grating, Mesh grating (MW 20 x 14 mm), Perforated grating, Slotted grating HEELGUARD, Slotted grating MASSIV 32, Slotted grating OvalGrip Design, Slotted grating OvalGrip Design, Slotted grating OvalGrip Design, Slotted grating SW 10, Slotted steel grating and double slotted steel grating, Slotted steel grating MASSIV 32

Channel dimensions for KE-100

Image Gutter size for KE-100 Reinforced edge channel

Accessories dimensions for KE-100 sump unit

Image Accessories dimensions for KE-100 sump unit

Installation instructions KE-100

ANRIN reinforced channel system made of polymer concrete

ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.

When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.

The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.

Important: Insert grates during installation.

Image 1 KE-100 Installation guide

1.

Excavate the trench.  Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.

Image 2 KE-100 Installation guide

2.

Connect pipe connections to the pipeline.

Image 3 KE-100 Installation guide

3.

Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.

Image 4 KE-100 Installation guide

4.

Attach end caps.

Image 5 KE-100 Installation guide

5.

Complete the string and align components to string.

Image 6 KE-100 Installation guide

6.

Pour foundation concrete along the channel flank.

Image 7 KE-100 Installation guide

7.

Lay the top layer.

Image 8 KE-100 Installation guide

8.

The covering should connect at least 4 mm higher than the cover grate.

Instructions and Regulations

Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.


For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“

KE-100 Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 13.6 cm
Height 6.0 cm. 8.0 cm. 10.0 cm / 15.0 - 25.0 cm
Weight 9.5 - 25.5 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp TwistLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)
Grating Slotted grating HEELGUARD, Slotted steel grating and double slotted steel grating

Channel dimensions for KE-100

Image Gutter size for KE-100 Reinforced edge channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN TwistLock fastening

Image ANRIN TwistLock fastening

Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.

ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.

The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.

Advantages:

·  Put in place – one rotation – fixed
·  Assembly without special tools
·  No rattling, no loosening

·  No disruptive bars in the channel interior area
·  Maintenance-friendly
·  Resistant to corrosion

Accessorie for KE-100

Image Channel body

Channel body

100 cm
with pipe socket

KE-100

Image Channel body

Channel body

KE-100

Image End cap

End cap

closed

KE-100

Image End cap

End cap

with DA / OD 110 pipe socket

KE-100

Image Pipe socket

Pipe socket

KE-100

Image Step connector

Step connector

KE-100

Image Sump unit

Sump unit

with dirt trap bucket
DA / OD 110/160 NBR seal rings

KE-100

Accessories dimensions for KE-100 sump unit

Image Accessories dimensions for KE-100 sump unit

Installation instructions KE-100

ANRIN reinforced channel system made of polymer concrete

ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.

When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.

The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.

Important: Insert grates during installation.

Image 1 KE-100 Installation guide

1.

Excavate the trench.  Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.

Image 2 KE-100 Installation guide

2.

Connect pipe connections to the pipeline.

Image 3 KE-100 Installation guide

3.

Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.

Image 4 KE-100 Installation guide

4.

Attach end caps.

Image 5 KE-100 Installation guide

5.

Complete the string and align components to string.

Image 6 KE-100 Installation guide

6.

Pour foundation concrete along the channel flank.

Image 7 KE-100 Installation guide

7.

Lay the top layer.

Image 8 KE-100 Installation guide

8.

The covering should connect at least 4 mm higher than the cover grate.

Instructions and Regulations

Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.


For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“

KE-100 KTL Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 13.6 cm
Height 6.0 cm. 8.0 cm. 10.0 cm / 16.0 - 26.0 cm
Weight 9.5 - 25.5 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp TwistLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN TwistLock fastening

Image ANRIN TwistLock fastening

Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.

ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.

The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.

Advantages:

·  Put in place – one rotation – fixed
·  Assembly without special tools
·  No rattling, no loosening

·  No disruptive bars in the channel interior area
·  Maintenance-friendly
·  Resistant to corrosion

Accessories

Image Channel body

Channel body

100 cm
with pipe socket

KE-100 KTL

Image Channel body

Channel body

KE-100 KTL

Image End cap

End cap

closed

KE-100 KTL

Image End cap

End cap

with DA / OD 110 pipe socket

KE-100 KTL

Image Pipe socket

Pipe socket

KE-100 KTL

Image Seal set

Seal set

KE-100 KTL

Image Step connector

Step connector

KE-100 KTL

Image Sump unit

Sump unit

with dirt trap bucket
DA / OD 110/160 NBR seal rings

KE-100 KTL

KC-100 Reinforced edge channel product specifications
Material polymer concrete
Length 100 cm
Width 13 cm
Height 10 - 15 cm
Weight 8.3 - 12.4 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp TwistLock fastening

Channel dimensions for KC-100

Image Gutter size for KC-100 Reinforced edge channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN TwistLock fastening

Image ANRIN TwistLock fastening

Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.

ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.

The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.

Advantages:

·  Put in place – one rotation – fixed
·  Assembly without special tools
·  No rattling, no loosening

·  No disruptive bars in the channel interior area
·  Maintenance-friendly
·  Resistant to corrosion

Accesseorie for KC-100

Image End cap

End cap

with DA / OD 110 pipe socket

KC-100

Image End cap

End cap

closed

KC-100

Image Pipe socket

Pipe socket

KC-100

Image Sump unit

Sump unit

with dirt trap bucket
DA / OD 110/160 NBR seal rings

KC-100

Accessories dimensions for KC-100 sump unit

Image Accessories dimensions for KC-100 sump unit

Installation instructions KE-100

ANRIN reinforced channel system made of polymer concrete

ANRIN drainage systems are designed to drain precipitation water safely and quickly. In addition, the structural elements have the task of absorbing static and dynamic loads resulting from traffic-related stresses and discharging them into the surrounding soil.

When selecting, planning and installing ANRIN drainage systems, the following technical regulations must be observed in their currently valid version.

The following installation instructions are schematic representations. They are exemplary and non-binding. The information given here is based on our many years of experience in civil engineering and road construction and on the current state of the art. Irrespective of this, planners and processors are in any case obliged to check the suitability of the products and the installation instructions. The exemplary details are simplified design proposals. Construction superstructures must be redesigned for the specific project.

Important: Insert grates during installation.

Image 1 KC-100 Installation guide

1.

Excavate the trench.  Place base course and compact. Concrete bed (C 12/15 to class C250 ) on the base course. Add to the base course.

Image 2 KC-100 Installation guide

2.

Connect pipe connections to the pipeline.

Image 3 KC-100 Installation guide

3.

Place the first channel element and, if necessary, the sump unit on the concrete bed. Align components on string.

Image 4 KC-100 Installation guide

4.

Attach end caps.

Image 5 KC-100 Installation guide

5.

Complete the string and align components to string.

Image 6 KC-100 Installation guide

6.

Pour foundation concrete along the channel flank.

Image 7 KC-100 Installation guide

7.

Lay the top layer.

Image 8 KC-100 Installation guide

8.

The covering should connect at least 4 mm higher than the cover grate.

Instructions and Regulations

Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.


For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“

KF-100 Reinforced edge channel product specifications
Material polymer concrete
Length 50 / 100 cm
Width 14.4 cm
Height 10.0 cm. 15.0 - 20.0 cm. 25 cm
Weight 17 - 22.4 kg
Nominal width 100
Joint formation

UNILINK®- Joint

Clasp TwistLock fastening
Load capacity A15 (test force 15 kN) to E600 (test force 600 kN)

Channel dimensions for KF-100

Image Gutter size for KF-100 Reinforced edge channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN TwistLock fastening

Image ANRIN TwistLock fastening

Decades of experience and thorough product development in the fields of installation, maintenance and cleaning of drainage systems have produced convincing solutions for durable closure technologies.

ANRIN grate closures are optimized for the respective load classes and combine safety and brand quality with functional design.

The TwistLock closure finds its application in grate designs for channels of nominal width 100 mm.

Advantages:

·  Put in place – one rotation – fixed
·  Assembly without special tools
·  No rattling, no loosening

·  No disruptive bars in the channel interior area
·  Maintenance-friendly
·  Resistant to corrosion

Accessorie for KF-100

Image Channel body

Channel body

100 cm
with pipe socket

KF-100

Image Channel body

Channel body

KF-100

Image End cap

End cap

closed

KF-100

Image End cap

End cap

with DA / OD 110
poured pipe socket

KF-100

Image Pipe socket

Pipe socket

KF-100

Image Seal set

Seal set

KF-100

Image Step connector

Step connector

KF-100

Image Sump unit

Sump unit

outlets DA/OD 110 and 160
with shaped NBR-rings

KF-100

Accessories dimensions for KF-100 sump unit

Image Accessories dimensions for KF-100 sump unit
Back to overview
