The grate is representative of the entire design line.
Slotted grating OvalGrip Design
Material: ductile-iron (KTL-coated)
Length: 50 cm
Load class: D400*
Length: 50 cm
Load class: D400*
Matching channel body

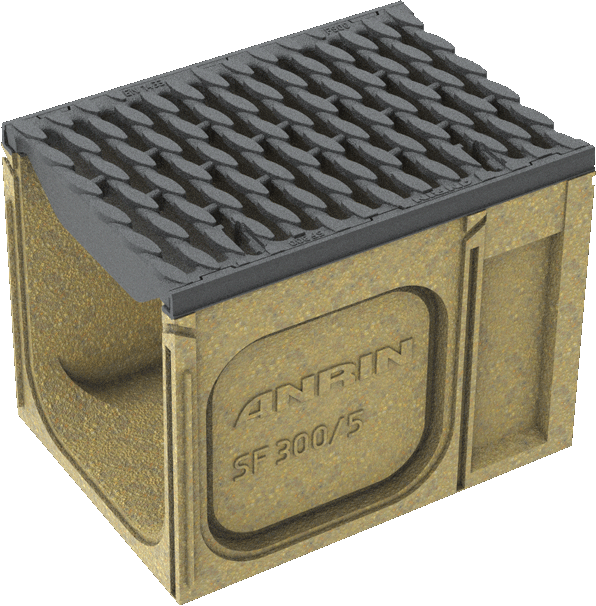

SF-300 Heavy duty channel
Load class:
D400*, E600*, F900*
Load class:
D400*, E600*, F900*
KE-300 Reinforced edge channel
Load class:
A15, B125, C250, D400*
Load class:
A15, B125, C250, D400*
ANRIN reinforced edge channels
A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available. The reinforced edge channels in nominal widths of 100, 150, 200 and 300 are available for the efficient drainage of rainwater from sealed surfaces.
| SF-300 Heavy duty channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 50 / 100 cm |
| Width | 36.4 cm |
| Height | 16.0 cm. 39.0 cm |
| Weight | 35.0 - 64.0 kg |
| Nominal width | 300 |
| Joint formation | UNILINK®- Joint |
| Clasp | RapidLock fastening |
| Load capacity | D400 (test force 400 kN), E600 (test force 600 kN), F900 (test force 900 kN) |
Channel dimensions for SF-300
ANRIN UNILINK®-Joint
The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!
The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!
ANRIN RapidLock fastening
This patented fastening developed in-house by ANRIN combines all the important functions of a grating lock for the accommodation of heavy loads in a stable and functional component. In addition, it is installed unobtrusively and harmonically into the attractive surface of the cast iron grating.
Advantages:
· Easy to install and lock in place
· Self-locking Rapidlock lacks the grating safely in place for traffic
· Better accommodation of traffic loads with intermeshing of grating and channel body
· Reliable function even when heavily soiled
· It is locked in place and lifted out without special tools
Accessorie for SF-300
Channel body
SF-300

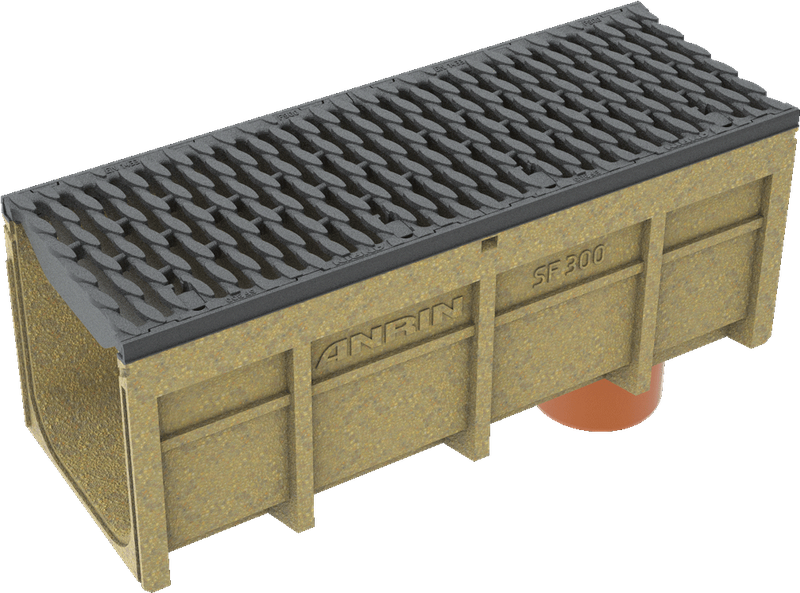

Channel body
100 cm
with pipe socket
SF-300
End cap
closed
SF-300
End cap
with DA / OD 110
poured pipe socket
SF-300
Pipe socket
SF-300
Seal set
SF-300
Sump unit
upper, middle and lower part
SF-300
Accessories dimensions for SF-300 sump unit
| KE-300 Reinforced edge channel product specifications | |
|---|---|
| Material | polymer concrete |
| Length | 100 cm |
| Width | 36.4 cm |
| Height | 29.0 - 39.0 cm |
| Weight | 83.4 - 98.0 kg |
| Nominal width | 300 |
| Joint formation | UNILINK®- Joint |
| Clasp | SnapLock fastening |
| Load capacity | A15 (test force 15 kN) to D400 (test force 400 kN) |
| Grating | Slotted grating OvalGrip Design |
Channel dimensions for KE-300
ANRIN SnapLock fastening
Decades of experience and thorough product development in the areas of assembly, maintenance and cleaning of drainage systems have given rise to outstanding solutions for durable fastening technology.
ANRIN grating fastenings are optimised for the respective load class and combine safety and brand quality with functional design.
The TwistLock fastening is used for grating types for channels with a nominal width of 100 mm.
Advantages:
· Put in place – press on – snap in place
· Assembly without special tools
· Impervious to transverse forces
· Non-corrosive stainless steel springs
· Reliable function even when heavily soiled
· Grating and channel body intermesh to form a sturdy unit
Accessorie for KE-300
End cap
closed
KE-300
Sump unit
upper, middle and lower part
KE-300
Installation instructions KE-200
With ANRIN drainage systems, accumulating rainwater should be drained safely and quickly. Moreover, the structural elements have the task of accommodating dynamic loads arising from traffic-related demands and dispersing them to the area of the foundation.
Amongst others, the following technical rules and regulations in their respective valid versions must be observed for the selection, design and installation of ANRIN drainage systems.
The following installation guidelines are schematic representations. These are provided as examples and are non-binding. The information provided here is based on our long-term experience in excavation and road construction as well as the state-of-the-art technology. Despite this, designers and planners are always obligated to check the products and the installation instructions for their appropriateness. The example details are simplified recommendations for execution.
Constructions are to be re-created on a project-specific basis.
1.
C250 with road concrete or concrete slabs or paving beds
2.
C250 with mastic asphalt
3.
D400 E600 with road concrete or concrete slabs or paving beds
4.
D400 E600 with mastic asphalt
Instructions and Regulations
Guidelines and regulations
The current guidelines and regulations of the state-of-the-art technology must be observed for the installation.
For example, these are:
DIN EN 1433 „Drainage channels for vehicular and pedestrian areas“
DIN 19580 „Drainage channels for vehicular and pedestrian areas“
RStO „Guidelines for the standardisation of the superstructure of vehicular areas“
DIN EN 206-1 „Concrete. Specification, performance, production and conformity“
DIN EN 1045-2 „Concrete, reinforced and prestressed concrete structures. Part 2: Concrete – Specification, properties,
production and conformity; Application rules for DIN EN 206-1“
