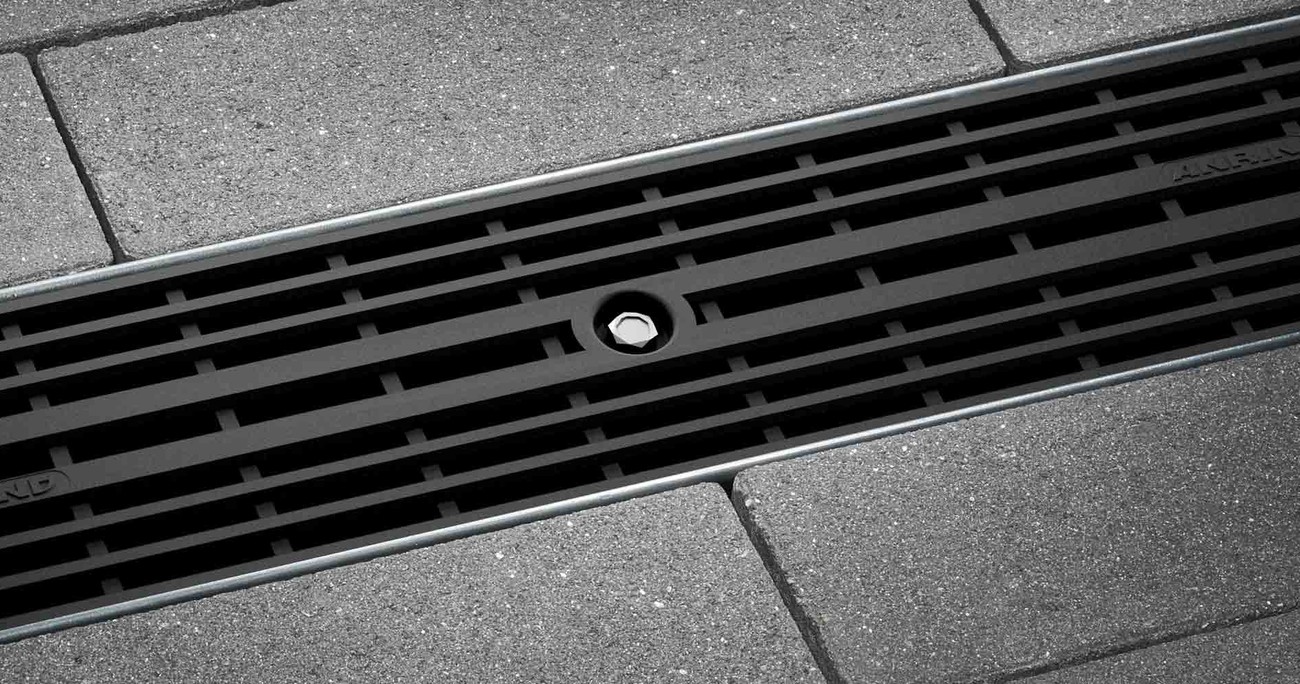

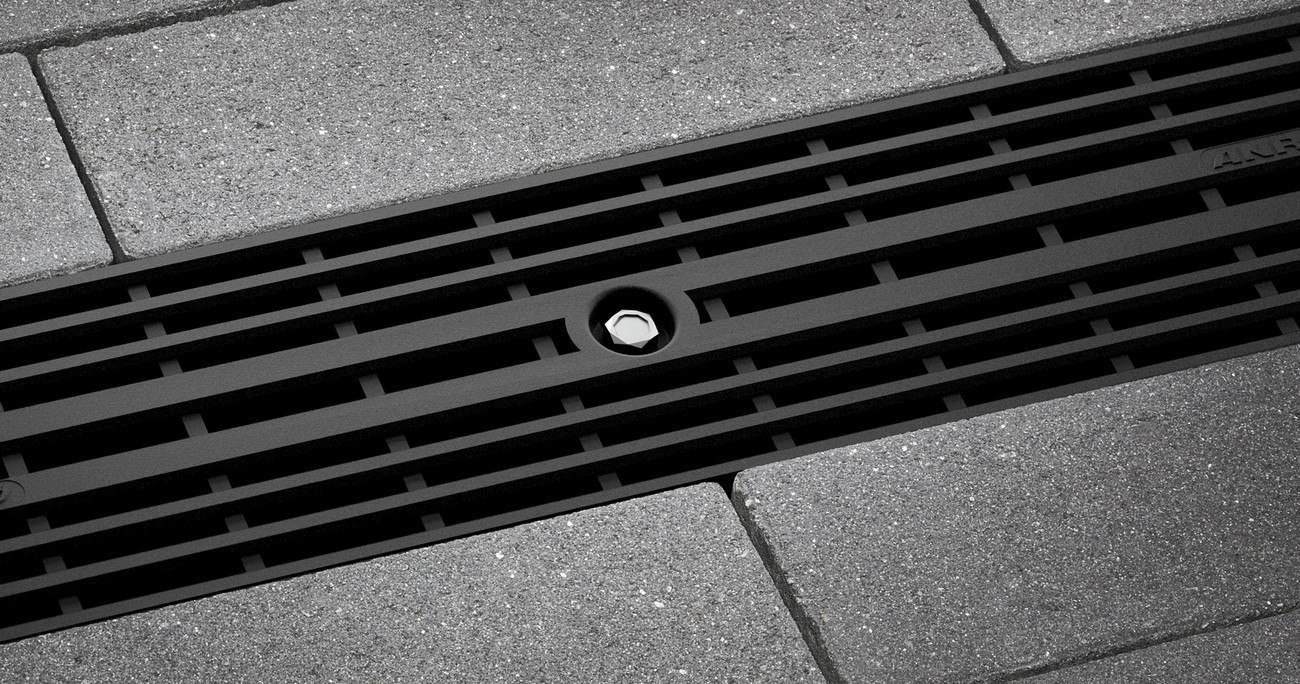

Plastic grating

Material: plastic
Length: 100 cm
Load class: A15

Matching channel body

SELF PP Plastic channel
Load class:
A15, B125, C250
Image Plastic channel
Image Plastic grating

The grate is representative of the entire design line.

ANRIN Entwässerungsrinnen aus Kunststoff

ANRIN plastic channels from the PP and PP EVO series are made from polypropylene (PP), an unbreakable, solid black plastic. Their light weight and ribbed edge profile make them easy to install and ideal for applications in residential construction.

SELF PP Plastic channel Product specifications
Material plastic (black), plastic polypropylene
Length 100 cm
Width 12.1. 13.1 cm
Height 6.3. 8.4. 10.0. 16.0. cm
Weight 1.6 - 1.8. 2.2. 2.7. 3.9. 7.3 kg
Nominal width 100
Clasp Rastverschluss, TwistLock-Verschluss
Load capacity A15 (Prüfkraft 15 kN) bis C250 (Prüfkraft 250 kN)
Grating Plastic grating, Plastic grating, Slotted grating, Slotted grating OvalGrip Design

Channel dimensions for SELF PP 080

Image Gutter size for SELF PP Plastic channel

ANRIN UNILINK®-Joint

Image <p>ANRIN UNILINK<sup>®</sup>-Joint</p>
Image 2 <p>ANRIN UNILINK<sup>®</sup>-Joint</p>

The optimised UNILINK® joint system eliminates the traditional differentiation between the beginning and end of the channel. Elements of an equal installation height can be joined in any arbitrary direction. The symmetrically divided half-joints enable the optional sealing of the splicing. Vertically aligned grooves and tongues support an efficient installation: In the process, the installation alignment can be chosen arbitrarily!

The flexibility in the design and installation phases enters a new dimension with the UNILINK® joint!

ANRIN Screw fastening

Image ANRIN Screw fastening

Decades of experience and detailed product development in the areas of assembly, maintenance and cleaning of drainage systems have produced impressive solutions for permanent fastening technologies.

ANRIN fastenings are optimised for the specific load classes and unite reliability and high quality with functional design.

ANRIN Snap-in fastening

Image ANRIN Snap-in fastening

Decades of experience and detailed product development in the areas of assembly, maintenance and cleaning of drainage systems have produced impressive solutions for permanent fastening technologies.

ANRIN Snap-in fastenings are optimised for the specific load classes and unite reliability and high quality with functional design.

Accessorie for SELF PP 080

Image Adapter

Adapter

with screws for linking with DN 100 pipe connections

SELF PP

Image End wall pair

End wall pair

080 for channel tongue and groove

SELF PP

Image End wall pair

End wall pair

SELF PP

Image Sump unit

Sump unit

SELF PP

Accessories dimensions for SELF PP 080 closed end cap

Image Accessories dimensions for SELF PP 080 closed end cap
