Soft edge block (black)

Material: polymer concrete
Length: 100 cm

ANRIN SPORT Soft edge blocks made of polymer concrete with EPDM rubber profile in black or white are particularly suitable for edging of running tracks, for demarcation of playing fields against segment areas and for edging of jumping pits or throwing pits.
The rubber profile is cast in polymer concrete and offers maximum active safety thanks to the elasticity of the material and the rounded edges. Widths of 5 cm for running track boundaries, over 6 cm for jumping pits and beach volleyball courts, up to 10 cm for shot put facilities and installation heights from 20 to 40 cm offer a variety of individual construction and design options.

Product specifications Soft edge block Length compensation Corner piece
Material polymer concrete polymer concrete polymer concrete
Lenght 100 cm 50 cm 25 x 25 cm
Width 5.0 / 6.0 / 10.0 cm 6.0 cm 6.0 cm
Height 20.0 / 25.0 / 30.0 / 40.0 cm 30.0 / 40.0 cm 30.0 / 40.0 cm
Weight 12.5 - 33.8 kg 10.0 / 11.1 kg 11.0 / 12.1 kg

Operation area

Area of application

outer and inner running track boundaries

Segmentation of playing fields

Edging for jumping pits and shot-put installations

Edging for beach volleyball fields

Soft edge block
L=100 cm
L=50 cm
Corner piece
Area of application
6/40 white
6/40 black
04521000
04501000
04521100
04501100
04521200
04501200
Long jump and triple jump

6/30 white
6/30 black
04522000
04502000
04522100
04502100
04522200
04502200
Long jump and triple jump

6/25 white
6/25 black
04523000
04503000


Edging for running tracks
and playing fields

6/20 white
6/20 black
04524000
04504000


Edging for running tracks
and playing fields

5/25 white
5/25 black
04526000
04506000


Edging for running tracks
and playing fields

5/20 white
5/20 black
04527000
04507000


Edging for running tracks
and playing fields

10/25 black
10/40 black
04509500
04508000


Edging for running tracks
and playing fields


Installation guides

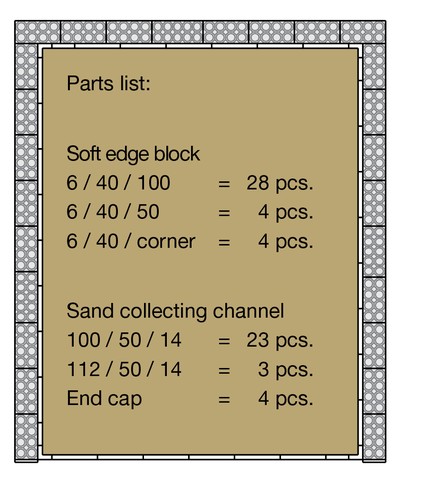

Laying plan

for edging for long jump
using the example of a pit with
of 9.00 x 7.00 m
