PRODUCT INFORMATION
SHORT DESCRIPTION
The NW 125 slotted channel was developed for the increasing number of arenas with level playing fields. This system ensures maximum variability with regard to different areas of the installation. The elimination of tripping hazards increases the comfort of use and simplifies maintenance. In order to comply with the regulations of the International Association of Athletics Federations, it is sufficient, where necessary (e.g. in case of a competition) to provide the channel bodies along the inside of the running track with a mobile frame or plastic cover.
Material polymer concrete Length 100 cm Width 16.0 cm Height 16.7 - 20.0 cm Weight 22.5 - 26.0 kg -
SERVICE AND CONTACT
Do you have questions about the product?
Get in touch with us
Tel.: +49 (0) 29 47.97 81-0
Mail: info@anrin.com
Find your local contact person through our ZIP code search
Accessories
Plastic cover
RPE-HD (white)
straight / curved (R = 36.5 m)
Sump unit 125 L.5
with aluminum angle frame and one-sided
coatable slotted cover with
PE sludge bucket and preforms
DA/OD 110/160
Sump unit 125 L.7
with aluminum angle frame and double-sided
coatable slotted cover with
PE sludge bucket and preforms
DA/OD 110/160
Operation area
|
Area of application
|
|
Arenas with field, running track and/or segments at the same height
|
|
Bundeswehr Sports Facilities
|
Installation guide

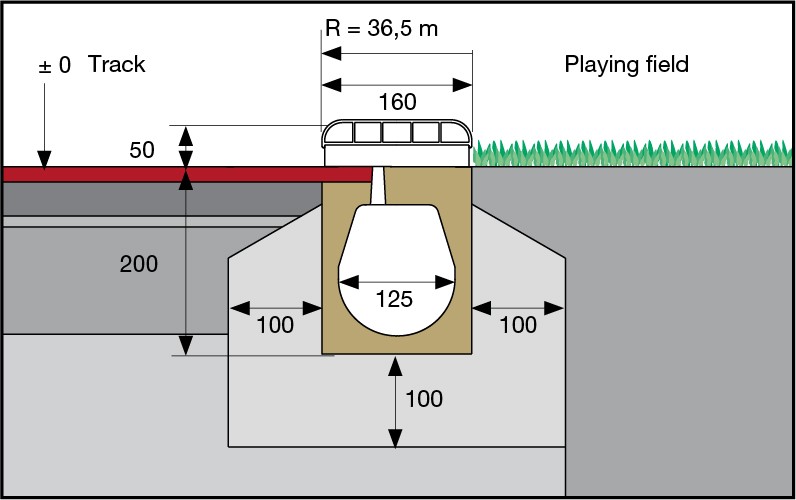

ANRIN SPORT
drainage system 125
Slotted channel
channel 125 C.5/C.6
channel 125 R.5/R.6
• straight/curved
• plastic cover (white)
• can be coated on one side

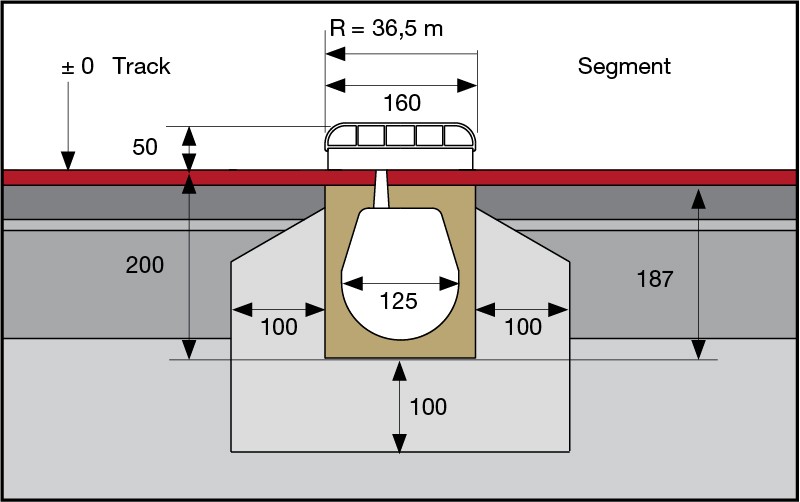

ANRIN SPORT
drainage system 125
Slotted channel
channel 125 C.7/C.8
channel 125 R.7/R.8
• straight/curved
• plastic cover (white)
• can be coated on both sides

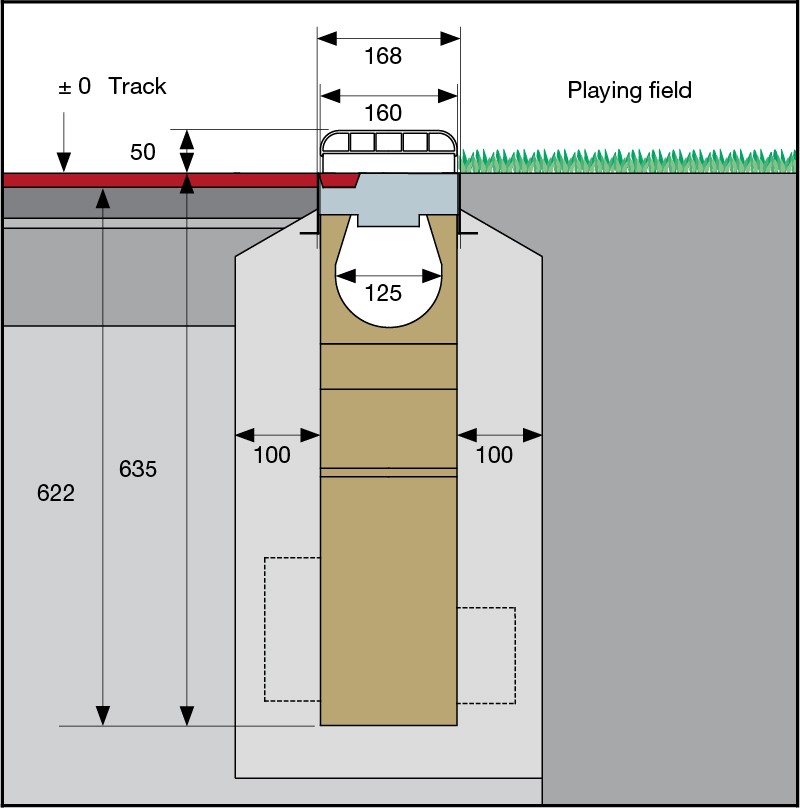

ANRIN SPORT
drainage system 125
Slotted channel
Sump unit type 125 L.5
• plastic cover (white)

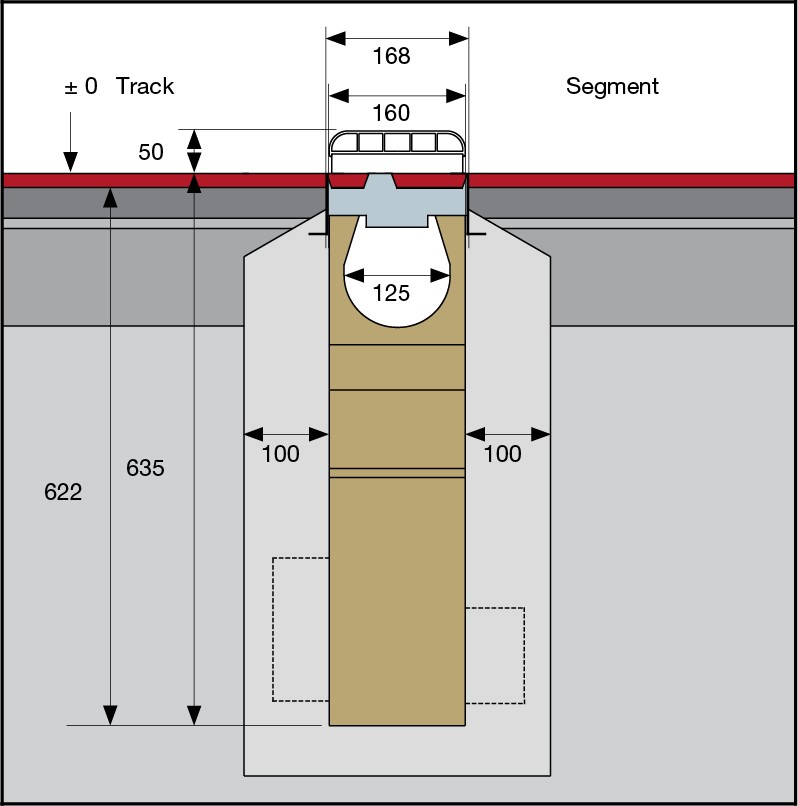

ANRIN SPORT
drainage system 125
Slotted channel
Sump unit type 125 L.7
• plastic cover (white)
